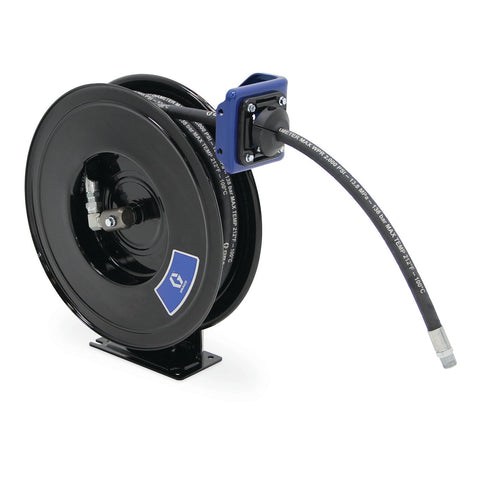

Graco | SDH5DA SDX 20, Grease, 3/8 in (10 mm) Inlet, Bare Reel (3/8 in X 50 ft (10 mm X 15 m) Capacity), NPT, Overhead Mount, White
Graco
Model: SDH5DA
Graco's flagship SDX hose reels offer high-quality performance and versatility. They are constructed with specially crafted components, including a rigid metal frame and low-friction swivels, and are available in five colors.
Featuring a durable metal spool and a rigid pedestal frame, the compact SDX Series is suitable for indoor and limited outdoor use in car dealerships, fleet maintenance facilities, public works garages, and light-utility service trucks.
- Low-Friction Cartridge Swivel: Ensures smooth reel operation with an easily replaceable swivel cartridge for simplified repairs.
- Full-Flow Swivel: Maximizes material flow with minimal pressure drop, enabling faster fills and increased vehicle throughput.
- Adjustable Arm: Allows for easy modification of the arm position to suit specific applications.
- Large Hose Capacity with Small Profile: The compact pedestal and spool design fits into confined spaces and supports hose capacities of 35-65 feet (10.7-19.8 meters) for NPT air/water, accommodating a wide range of uses.
- Durable Finish: A baked-on enamel finish provides corrosion protection for the reel.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946215328 |
| Division | LED |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Dry Weight (lb) | 52 |
| Hose Inside Diameter (mm) | 9.525 |
| Inlet Size (in) | 3/8 |
| Inlet Size (mm) | 9.525 |
| Maximum Temperature (°C) | 93 |
| Maximum Temperature (°F) | 200 |
| Maximum Working Pressure (psi) | 5000 |
| Minimum Temperature (°C) | -40 |
| Minimum Temperature (°F) | -40 |
| Outlet Size (in) | 1/4 |
| Outlet Size (mm) | 6.35 |
| Overall Height (in) | 21.8 |
| Overall Height (mm) | 554 |
| Overall Length (in) | 19.2 |
| Overall Length (mm) | 487 |
| Overall Width (in) | 7 |
| Overall Width (mm) | 177 |
| Series | 20 |
| Frame Type | Single Pedestal |
| Reel Thread Type | NPT |
| Inlet Thread Gender | Male |
| Outlet Thread Gender | Male |
| Recommended Fluid Type | Grease |
| Hose Reel Type | Bare Reel |
| Model | SDX |
| includes_hose | No |
