Full tubular steel frame, with lockable enclosure

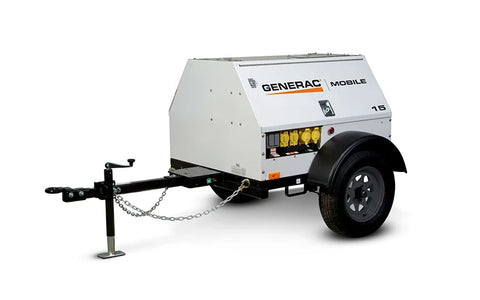

Generac | MLG15M-STD2, Trailer Mounted Mobile 14kw Diesel Generator, w/ Mitsubishi engine
MOBILE POWER • INDUSTRIAL DUTY
MLG15M-STD2, Trailer Mounted Mobile 14kw Diesel Generator, w/ Mitsubishi engine
Manufacturer: Generac
Model: MLG15M-STD2
Category: Diesel Mobile Power
A mobile diesel power system designed for construction, rental, industrial, utility, and emergency applications that require dependable output, transportability, and service access. Review the key features and detailed configuration below for the Generac MLG15M-STD2.
01
2 year - 2,000 hour warranty
02
Self-priming 4 cylinder Mitsubishi engine
03
Automatic low oil level / high temp shutdown alerts
04
External convenience outlets with individual breaker switches
Key Features
Performance and operating advantages
Key manufacturer-listed features are organized below for faster comparison and purchasing review.
Durable, fade resistant, white baked on powder coat finish
Stainless steel hinges, exterior hardware and pad lockable door latches
CSA Certified
Key switch to preheat (glow plug), start & stop
Automatic low oil level / high temp shutdown alerts
70A Start limit main breaker
2 year - 2,000 hour warranty
Marathon voltage regulation within +/- 1%
Self-priming 4 cylinder Mitsubishi engine
External convenience outlets with individual breaker switches
External emergency stop switch
Technical Details
System configuration and standard equipment
Expand each section to review the available technical details from the existing manufacturer product information.
Engine System+
- Mitsubishi® MVS4L2-W464ML
- 4 cylinders
- Naturally aspirated
- Displacement: 107 in3(1.75 L)
- EPA Final Tier 4
- Power @ 1,800 rpm – hp (kW): — Prime: 22.39 (16.7)—with fan — Standby: 24.27 (18.1)—with fan
Fuel System+
- Usable Fuel tank capacity – 56 (212) US gal (L): COOLING SYSTEM
- Capable of Operating at 120 °F (50 °C) Ambient
- Coolant capacity: 11.6 qt (10.98) L
- Oil filter: Full flow, spin-on type
- Air filter: Dry type
Generator System+
- 60 Hz engine-driven alternator
- Marathon® 333CSA3024
- Voltage regulation ±1% with Marathon SE350 voltage regulator
- Voltages available: 120, 240 System Outputs
- Electrical power output : — 1-phase standby: 14 kW (14 kVA)—58 A @ 240 V — 1-phase prime : 13 kW (13 kVA)—54 A @ 240 V
Power Distribution+
- 70 A main breaker
- Convenience receptacles with individual breakers — Two 120 V, 20 A, GFCI, duplex outlets (NEMA 5-20R type) — Three 240 V, 30 A, twistlock outlets (NEMA L14-30R type) — 240 V, 50 A, twistlock outlet (CS 6369)
- One 12 V, 770 CCA, wet cell battery
Enclosure+
- 14-gauge steel — UV and fade resistant, high temperature cured, white polyester powder paint — Insulated and baffled — 71 dB(A) @ 23 ft (7 m) @ prime power
- Fully lockable
- Emergency stop switch
- Central lifting point
- Multi-lingual operating and safety decals
- Document holder with owner’s manual – includes AC and DC wiring diagrams
Trailer+
- One 2,200 lb (998 kg) leafspring axle
- 2 in (51 mm) ball hitch
- Transportation tie downs
- Safety chains with spring loaded safety hooks
- Tongue jack with footplate – 2,000 (998 kg)
- Tires: ST205/75R15
- DOT approved lights: Tail, side, brake, and directionals
- Illuminated License Plate Holder
System Controls+
- Key-activated switch with four positions (GLOW PLUG, OFF, RUN, START)
- Hour meter
Warranty+
- 2 year limited or 2,000 hours — Unlimited hours covered in first year
Certifications+
- CSA certified
Product specifications and available configurations may change. Confirm current requirements with HTS Supply before purchase.
