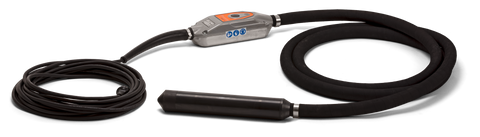

Husqvarna SMART I | POKER SMART 56 | 115 V | 1 ph | 50/60 Hz | 10 m | NA | 967856008
Part Number: 967 85 60-08 (967856008)
The Husqvarna SMART I (Article 967856008) is a high-frequency electronic concrete vibrator designed for professional construction applications. This unit features an integrated frequency converter, allowing it to operate directly from a standard 115 V, 1-phase, 50/60 Hz power source. Engineered for efficiency, the system delivers high centrifugal force and stable speed to ensure consistent concrete consolidation with minimal dips.
Technical Specifications:
- Model: SMART I | POKER SMART 56
- Voltage: 115 V
- Phase: 1 ph
- Frequency: 50/60 Hz
- Hose length: 10 m
- Article number: 967856008 / 967 85 60-08
The design prioritizes operator comfort by reducing hand/arm vibrations through an integrated motor-in-head configuration. The 10-meter hose provides extended reach for large-scale projects, while the electric operation eliminates exhaust emissions and reduces noise levels on the job site.
Product Features
Powerful and reliable
Constant vibrations at 12,000 vpm ensures high centrifugal force, stable speed and high amplitude, which results in excellent concrete vibration with fewer dips in any type of concrete slump.
Extend your reach
Fifteen meters of cable and up to ten metres of hose provide you with exceptional reach around the worksite.
Smart ergonomics
The innovative motor-in-head design ensures vibrations stay inside the concrete, where they belong, instead of in your hands and arms.
Plug-and-work
Built-in frequency converter means any regular wall socket with the appropriate voltage is all you need to plug in, power up and start working.
Less noise, no emissions
By using electricity instead of petrol, this vibrator produces no fumes and less noise.
Fixed green light means ready
The power unit features a LED indicator showing the operational status of the vibrator.
| Product data | |
|---|---|
| Frequency | 50/60 Hz |
| Dimensions | |
| Hose length | 32.8 ft |
| Tube diameter | 2.205 in |
| Packaging length (Calc) | 35.039 in |
| Packaging width (Calc) | 31.496 in |
| Packaging height (Calc) | 3.937 in |
| Article gross weight (Calc) | 48.943 lbs |
- 594626801 — VIBRATING HEAD SMART 40 | 230 V
- 594794701 — CLIP Cable, D 4
- 594281701 — CLAMP
- 594388405 — HOSE 1 PCE = 5 M of 4700366152 / 594388401
- 594257501 — INSULATION THERMO-R4 LG45 0.05 M
- 595118501 — SLEEVE
- 594254904 — HOSE 1 PCE = 0.55 М 4700101697 / 594254901
- 594286401 — CLAMP
- 594287702 — CABLE 1 PCE = 6 M of 4700186523 / 594287701
- 598479102 — WIRE 1 PCE = 6 M 4812052792 RED COLOR
- 594285903 — WIRE 1 PCE = 6 M of 4700185909 / 594285901
- 594527804 — CABLE 1 PCE = 6.5 M of 4700900061 / 594527801
- 594619801 — UNIT Electronic
- 594408801 — BOX Stuffing
- 594257102 — HOSE 1 PCE = 0.08 M OF 4700107996 / 594257101
- 594623001 — COVER CPL BOX
- 547163701 — SCREW BOSSARD: 3271308 BN 13916 M5X30 T25 450HV
- 594620201 — HANDLE Eye Piece
- 595141401 — RIVET
- 595525301 — VIBRATING HEAD SMART 40 | 115 V
- 594620301 — SCREW
- 594621401 — O-RING
- 594619901 — DIAPHRAGM Rubber Membrane
- 594620001 — PLATE
- 594620101 — SWITCH
- 594630701 — WIRE Earth, Complete
- 594286101 — SCREW TC M4X8 LAITON
- 594853601 — UNIT Spade-D 4 Blue
- 595196501 — CLIP
- 595196601 — WIRE 6 M cETLus
- 595196701 — WIRE 6 M cETLus
- 598479201 — WIRE 1 PCE = 6 M of 4812052843 / 529486001 RED COLOR cETLus
- 594256801 — SHEET Flexible
- 594255201 — CLAMP
- 595045201 — CABLE
- 594623301 — CABLE Plug, UK
- 595196801 — PLUG
- 594619301 — PISTON Gland PG16 - 19716 (IP67)
- 594626901 — VIBRATING HEAD SMART 48 | 230 V
- 594627001 — VIBRATING HEAD SMART 48 | 115 V
- 594627101 — VIBRATING HEAD SMART 56 | 230 V
- 594627201 — VIBRATING HEAD SMART 56 | 115 V
- 594627301 — VIBRATING HEAD SMART 65 | 230 V
- 594290101 — CAP
- 595156701 — CAP ELASTOMER END 40 mm
- 594290301 — BEARING
- 594286501 — SCREW H M 5X18 CL8.8 DIN933
- 594399301 — WASHER ZM5
- 594290201 — ECCENTRIC
- 594262301 — ROTOR
- 594272301 — BUSHING
- 594621501 — TUBE Stator SMART40 230V
- 594860201 — TUBE Stator SMART40 115V
- 594272201 — BEARING Needle
- 594621601 — BEARING Holder
- 595149001 — HOSE
- 594268001 — O-RING 33,05X1,78 70SH
- 595156001 — NIPPLE
- 594272701 — SCREW C S M 4X 5 LAITON DIN84A
- 594289001 — GASKET RUBBER
- 594290401 — PROTECTION Flexible Sheating
- 594287501 — RING Thrusting
- 594287301 — SCREW Thrust
- 594289401 — CAP
- 595156801 — CAP ELASTOMER END 48 mm
- 594289601 — BEARING
- 594286301 — RETAINER RING EXT D 17X1,5 RENF
- 595466301 — SCREW
- 594399401 — WASHER ZM6 NFE25-511 BN80598
- 595523601 — ECCENTRIC
- 594289501 — ROTOR
- 594621701 — TUBE Stator SMART48 230V
- 595196401 — TUBE
- 594265001 — BEARING Holder
- 594277802 — HOSE 1 PCE = 0.08 M OF 4700183321 / 594277801
- 594266901 — O-RING 35X2 70SH
- 594264901 — NIPPLE
- 594289101 — CAP
- 595029601 — CAP ELASTOMER END 56 mm
- 594289301 — BEARING
- 594278001 — RETAINER RING EXT D 20X1,75 RENF
- 595053801 — SCREW CAP, M6-1X30 8.8
- 595523701 — ECCENTRIC
- 594289201 — ROTOR
- 594273701 — BUSHING
- 594621801 — TUBE Stator SMART56 230V
- 594621901 — TUBE Stator SMART56 115V
- 594273601 — BEARING NEEDLE
- 594622001 — BEARING Holder
- 594860301 — NIPPLE
- 594289701 — CAP
- 595450901 — CAP ELASTOMER END 65 mm
- 594290001 — BEARING
- 595344301 — SCREW M8x30 DIN 933 A4 SCREW
- 594399501 — WASHER ZM8
- 595157801 — ECCENTRIC
- 594289901 — ROTOR
- 594622101 — TUBE Stator SMART65 230V
- 594277701 — BEARING
- 594791001 — HOSE
- 594268301 — O-RING 48,9X2,62 70SH
- 594290501 — NIPPLE
- 594628001 — CABLE NEW CONVERTER KIT WITHOUT
- 594257101 — HOSE 1 Meter
- 594627501 — DECAL
- 595504901 — LABEL HV Test
- 596311301 — DECAL Smart 40
- 596311601 — DECAL Smart 65
- 596311401 — DECAL Smart 48
- 594622601 — DECAL
595029601
Cap
