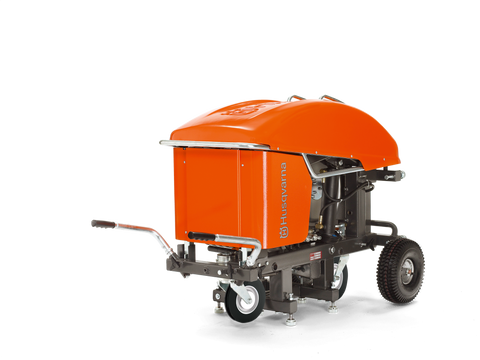

Husqvarna CS 2512 | WIRE SAW CS 2512 Wiresaw | 965156201

$49,367.00

Part Number: 965 15 62-01 (965156201)

The Husqvarna CS 2512 wire saw (Article 965156201) is designed for operation with the PP 455 E hydraulic unit. This system is engineered for versatility, offering a compact, mobile solution for small-scale tasks while maintaining the capacity for deep, large-scale sawing projects. The unit is suitable for cutting through steel, concrete, and various building materials, and can be configured for both ground-level and wall-mounted applications.

Product Features

Large wire magazine

Although the wire saw is compact it has a large magazine capacity, enabling larger cuts without cutting the wire.

Flexible setup

Thanks to modular systems, the wire saws are easy to install. They can be positioned both vertically and horizontally. The motor can be detached for easier transportation.

Easy transportation

Practical collapsible handles and foldable guard allow easy transportation of the unit. The saw can also be dismantled into sections, which further increases mobility.

Smooth cutting

The pulleys follow the direction of the wire automatically thanks to the ball bearing turning mechanism.

Tightened wire in the magazine

The drive wheel is located on the output side of the machine so even when the feeding power is low slack in the wire never occurs in the magazine.

Easy to control wire tension

The adjustable pressure valve provides accurate control of the sawing operation and superior performance.

Larger jobs

Wire sawing for jobs such as foundations and bridges.

Thick walls

Cutting in thick walls and openings with precise corners.

Confined spaces

Deep wire sawing in confined spaces.

Engine
Motor for wire drive	Hydraulic multiple gear
Output power with PP 455	27 hp
Spindle starting torque	190
Power Source	Hydraulic
Cutting equipment
Wire speed gear 1, max	65 ft/s
Wire speed gear 2, max	82 ft/s
Hydraulics
Hydraulic oil flow	17 gal/min
Hydraulic pressure, max	3,300 psi
Product data
Direction of rotation	One direction
Wire configuration in drive unit, min	12 ft
Net wire storage capacity	52 ft
Dimensions
Product size length	48 in
Product size width	32 in
Product size height	48 in
Weight	190 lbs
Packaging length (Calc)	43.307 in
Packaging width (Calc)	29.528 in
Packaging height (Calc)	35.433 in
Article gross weight (Calc)	518.086 lbs
Sound and noise
Sound power level, guaranteed (LWA)	95 dB(A)
Sound power level, measured	94 dB(A)
Sound pressure level at operators ear (LpA)	83 dB(A)

501318401 — BEAM CS 2512 Cross beam CS 2512 531120529
501318701 — BRACKET CS 2512 Anchor Beam CS 2512 (531114406)
725246371 — SCREW EHHM ISO 4017 M8x60 8.8 ZPB
725254651 — SCREW EHHM ISO 4014 M 12 X 70 8.8 ZPB
579656301 — FRAME
501357201 — BEAM Foot beam B CS 2512 (531114392)
531120403 — SCREW
531120459 — FOOTPLATE FOOT
531120532 — SLEEVE
728736405 — SCREW IHSETM M6x10 St TBO
731232201 — HEXAGON NUT ISO 4032 M12 8 ZPB
501357101 — BEAM Foot beam C CS 2512 531114336
531119561 — PAD RUBBER D20/30 M6x15
531119007 — WHEEL 300R20/75
531140627 — WASHER
531119557 — LOCKING PIN 3MM
501357001 — HANDLE BRACKET CS 2512 531114391
531114370 — HANDLE
531119273 — O-RING 29X2.5
531119496 — PIN SPRING 10X36 FRP 10x36
531119497 — SCREW CAP M8 MHM M8
531119507 — SPRING SF 2,5x25x81,6
531119548 — HANDLE WN525 110-22
531120402 — PIN HANDLE
725645951 — SCREW IHCSFM M8x40 10.9 ZPB
531119262 — O-RING 18.3X2.4
531114394 — KNOB COMPL.
531114418 — CYLINDER HYDRAULIC D60
531114470 — SHAFT
531119555 — WASHER 28x40x2
531119558 — CLAMP HOSE ABA 58-75
531120364 — BELLOWS
531120488 — POINTER
725246951 — SCREW EHHM M8x90 8.8 ZPB
531119481 — CLIP SEEGER CIRCLIP 519052 AV 25x1,2V
531119510 — SCREW K6S 6X10
531120124 — SHAFT
728736005 — SCREW IHSETM M6x6 St TBO
531119521 — NIPPLE GREASE M8x1,25
731231801 — HEXAGON NUT ISO 4032 M8 8 ZPB
531119511 — SCREW K6S 8x16 10.9 fzb
531119210 — SCREW M6S 6X12
740430600 — O-RING BS 4518 8.3x2.4 NITRILE RUBBER
577401101 — NIPPLE GREASE
579656701 — COVER
531120533 — ANGLE BRACKET ANGULAR SCALE
579656401 — ARM Magazine arm
531119040 — WASHER BEARING AS 4060
531119322 — CLIP SEEGER CIRCLIP SGH 80
531119504 — O-RING 71,12X2,62
531119514 — BEARING NU 208 EC
531119515 — SEALING SHAFT SEAL BA 56X80X8 BA 56x80x8
531120549 — COVER
531120561 — COVER
531120562 — PLUG
531120564 — SEALING RING
531120565 — FLANGE
531120567 — SPACER RING
728832705 — SCREW IHSETM M5x12 St TBO
740441200 — O-RING BS 4518 39.2x3 NITRILE RUBBER
728844301 — SCREW IHSETM M8x8 St ZPB
531119529 — BEARING 6208 2RS1
735313700 — CIRCLIP SGA 40x1.75 St PP
531114481 — WHEEL MAGASIN WITH BEARINGS
531119598 — BEARING HK 4018 RS
579402501 — WHEEL Wire magazine CS2512
579656601 — SPACER
579656901 — SHAFT
579660501 — PULLEY ASSY CS2512 magazine incl. bearings
531114414 — SHAFT ANGLE
725546951 — SCREW IHSCM ISO 4762 M 8 X 90 12.9 ZPB
740431200 — O-RING BS 4518 14.3x2.5 NITRILE RUBBER
531119508 — SPRING DF-A 2,5x18x85,8
531119550 — WASHER 15x21x1
531119552 — MOUNT SPRING FF 4661 M8
531120479 — HOOK
531120480 — HOOK
531120511 — ROLLER ROLL
735311700 — CIRCLIP SGA 15x1 St PP
740383401 — SEALING WASHER 17.3x23.9 St ZPB /RUBBER
734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
732251801 — HEXAGON LOCKING NUT ISO 7040 M8 8 ZPB. NF
531114417 — SHAFT ANGLE
531120472 — BRACKET
531119502 — SCREW M6SF 6x16 8.8 fzb
531120347 — INDEX PLATE INDEX SCALE
725545301 — SCREW IHSCM M8x25 8.8 ZPB
501356901 — FRAME Drive unit CS 2512 531114294
531114295 — CLAMP
531114373 — LOCKING HANDLE
531119206 — SCREW M6S 12X40
531119334 — V-RING V60A
531119528 — V-RING 85 V-85A
531120051 — HUB CAP
531120052 — RING
531120056 — DRIVE SHAFT
531120057 — SEALING RING
531120285 — WASHER
531120469 — LOCKING PLATE
531121379 — KNOB TRIANGULAR HAND WHEEL M
721441100 — SPRING PIN ISO 8752 10x20 St
725546201 — SCREW IHSCM ISO 4762 M 8 X 55 8.8 ZPB
732252271 — HEXAGON LOCKING NUT ISO 7040 M12 10 ZPB. NF
531114451 — DRIVE CABLE
531119183 — WASHER 13X24X2
531114226 — HYDRAULIC MOTOR CS 2512 Compl.
531114479 — HYDRAULIC MOTOR CS 2512
531114483 — SEALING SHAFT SEAL SET
531118034 — CLUTCH
531118041 — HYDRAULIC CYLINDER
531118042 — HYDRAULIC CYLINDER
531118295 — FITTING BANJO
531119045 — BALL D20XM5
531119098 — SPRING LBR 45 F
531119099 — BALL 6 MM
531119149 — BEARING AXK 1024
531119185 — SEALING RING 1/2
531119263 — O-RING 19.3X2.4
531119270 — O-RING 24.2X3
531119340 — PLUG VSTI R1/2
531120135 — VALVE BLOCK
531120136 — BLOCK RETURN
531120137 — ADAPTER return block
531120138 — ADAPTER Valve block
531120139 — NIPPLE
531121402 — VALVE LEVER HUB
531122085 — COVER VALVE
531122087 — VALVE VALVE
531142025 — NIPPLE 1/2"
720126550 — PARALLEL PIN ISO 8734 TYPE B 4x6 CH St
721425800 — SPRING PIN ISO 8752 4x24 St
725536801 — SCREW IHSCM ISO 4762 M 6 X 16 8.8 ZPB
725545901 — SCREW IHSCM ISO 4762 M 8 X 40 8.8 ZPB
725632751 — SCREW IHCSFM M5x12 10.9 ZPB
740430700 — O-RING BS 4518 9.3x2.4 NITRILE RUBBER
531119589 — SCREW ISO 7380-1 M 6 X 20 ZPB
531120050 — DRIVING RING
587701501 — RUBBER RING
734115201 — WASHER ISO 7089 6.4x12x1.6 St 200HV ZPB
732251601 — HEXAGON LOCKING NUT ISO 7040 M6 8 ZPB. NF
504909501 — BEARING HOUSING ASSEMBLED
531114395 — PIVOT HOUSE
531114397 — FORK
531119181 — WASHER 10.5X22
531119545 — SEALING SHAFT SEAL BA 65X80X8 BA 65x80x8
531120383 — ROD
531120464 — COVER
725250951 — SCREW EHHM ISO 4014 M 10 X 90 8.8 ZPB
732252001 — HEXAGON LOCKING NUT ISO 7040 M10 8 ZPB. NF
735314200 — CIRCLIP SGA 50x2 St PP
738211004 — BALL BEARING SINGLE ROW - 10 6010-2RS1
531114396 — WHEEL
576314101 — SHAFT
576314701 — LID COVER
576614301 — DUST SEAL Seal washer Z007
576615101 — CLIP Circlip SGH62
540113301 — WHEEL Wire
579659901 — PULLEY ASSY
738210704 — BALL BEARING SINGLE ROW - 10 6007-2RS1
531114318 — WHEEL
531114345 — BRACKET ALIGN DEVICE
531119524 — SCREW K6S 10x20 10.9 fzb
531119549 — CLIP SEEGER CIRCLIP SGA 28 SGA 28
576314201 — LID COVER
576314401 — LID COVER
579661401 — SHAFT
579702801 — PULLEY Guide pulley assy
531117372 — GROMMET RUBBER
531118003 — COUPLING HYDRAULIC FEMA
531118004 — NIPPLE HOSE 18012
531118018 — VALVE BALL 3/8
531118218 — QUICK COUPLING MALE 134111M
531118304 — NUT 3/8"
531118319 — NIPPLE 1/4"
531118320 — BUSHING MUFF
531118321 — NIPPLE 3/8
531118322 — ANGLE BRACKET
531118324 — COUPLING ANGLE 1/4"
531118326 — NIPPLE HEXAGON 1/4-3/8
531120307 — BLOCK WATER
531120309 — TUBE WATER
531120492 — TUBE WATER
531120493 — BRACKET
531124180 — NIPPLE 3/8
505432801 — SLEEVE
725246751 — SCREW EHHM ISO 4014 M8x80 8.8 ZPB
531114354 — ROD
531119559 — ANGLE BRACKET LINK DIN 71802 AS M12
501356801 — GUARD DRIVING PULLEY CS 2512 (531114458)
531119566 — SCREW M6S 8x85
501357501 — PROTECTIVE PLATE CS 2512 531120411
531114380 — FRAME
531114389 — BAR
531119211 — SCREW M6S 6X16
531119332 — WASHER 6.4X22X4
531119506 — SPRING DF-A 2,5x18x63,3
531119542 — SCREW K6S 6x40 10.9 fzb
531120449 — STOP
531120539 — SLEEVE
531120540 — WASHER BRASS
531119426 — SCREW ISO 7380-1 M 6 X 16 10.9 ZPB
504009101 — PROTECTIVE COVER Assembled
531114383 — FRAME
531114388 — HANDLE
531114393 — BRACKET
531119353 — SCREW DIN 7984 M 6 X 12 8.8 ZPB
531119543 — SCREW K6S 6x35 10.9 fzb
531119544 — SCREW K6S 6x50 10.9 fzb
531120405 — COVER SHEET
725533101 — SCREW IHSCM ISO 4762 M5x20 8.8 ZP DIN 912 HEX SOCKET HEAD CAP SCREW
574268501 — NUT
531118309 — SCREW BANJO 3/8"
531118340 — VALVE ASSY PRESSURE RESTRICTION
531118349 — COUPLING HYDRALIC GE 12 LR-ED
531119223 — SCREW M6SF 6X40
531119554 — CLAMP RBP-215
531120651 — VALVE BLOCK
531120654 — HOSE KIT CYLINDER
531120655 — HOSE 230mm
725545501 — SCREW IHSCM M8x30 8.8 ZPB
531118045 — HYDRAULIC CYLINDER
531123100 — WASHER
740381801 — SEALING WASHER 10.4x15.9 St ZPB /RUBBER
531114426 — VALVE
531118046 — HYDRAULIC CYLINDER
531118077 — PRESSURE CHAMBER
531118199 — KNOB
531118298 — MANOMETER 0-160
531118299 — PROTECTION 63mm R÷d
531118303 — CHECK VALVE
531119342 — PLUG VSTI R1/8
531142111 — BLOCK PRESSURE REDUCING
531142121 — HOSE 1/8-1/4 125MM
531142122 — HOSE 1/8-3/8 125MM
740382701 — SEALING WASHER 13.7x20.6 St ZPB /RUBBER
