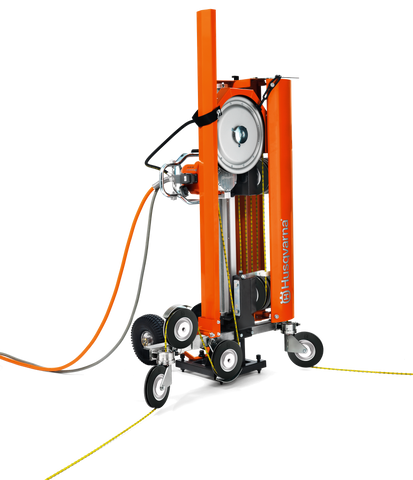

Husqvarna CS 10 | WIRE SAW CS 10 EU/US/RoW | Swivel pulleys | 966565701

$24,026.00

Part Number: 966 56 57-01 (966565701)

The Husqvarna CS 10 (Article 966565701) is a wire saw system engineered for integration with the WS 482 HF or WS 440 HF electric wall saws. This modular configuration provides a versatile solution for both wall and wire sawing applications. Designed for cutting steel, concrete, and various building materials, the unit features a symmetrical architecture that allows for operation in multiple positions, including confined spaces. The system includes swivel pulleys to enhance maneuverability during operation.

Product Features

Easy handling

Its compact design makes CS 10 easy to operate, transport and store.

Highly efficient and flexible

Possible to saw both vertically and horizontally. The saw head can be mounted on either side of the track and the direction of the wire is reversible.

User-friendly wireless remote control

Together with WS 482 HF or WS 440 HF, you can use a remote control, that has a logical and ergonomic design with a large and clear display, which shows the current performance of the saw.

Efficient product fleet

Thanks to compatibility between wall and wire systems.

Flexible installation

The saw has a flexible design and can easily be mounted on objects like pipes.

Flexible operation

The saw can be installed to cut on the right or the left. This gives great flexibility during installation and when selecting the direction of the cut.

Engine
Motor for wire drive	Electric Wall Saw
Output power with WS 482 HF and PP 492	25 hp
Output power with WS 482 HF and PP 490	25 hp
Output power with WS 482 HF and PP 480 HF	25 hp
Output power with WS 440 HF and PP 492	17 hp
Output power with WS 440 HF and PP 440 HF	17 hp
Spindle starting torque	160 Nm
Power Source	Corded
Cutting equipment
Wire speed gear 2, max	79 ft/s
Product data
Direction of rotation	Both directions
Wire configuration in drive unit, min	3 ft
Net wire storage capacity	32.8 ft
Dimensions
Product size length	48 in
Product size width	32 in
Product size height	212.6 in
Weight	222 lbs
Weight with WS 440 HF	297 lbs
Weight with WS 482 HF	304 lbs
Packaging length (Calc)	31.496 in
Packaging width (Calc)	47.244 in
Packaging height (Calc)	51.575 in
Article gross weight (Calc)	416.233 lbs
Sound and noise
Sound power level, guaranteed (LWA)	100 dB(A)
Sound power level, measured	99 dB(A)
Sound pressure level at operators ear (LpA)	86 dB(A)

576371701 — WIRE GUIDE
576371601 — ARM
531119224 — SCREW DIN 6921 M 8 X 20 ZPB
531119202 — SCREW ISO 4017 M 12 X 25 8.8 ZPB
531119183 — WASHER 13X24X2
576293801 — BASE Base Welding
531140618 — SCREW
531140620 — PLUG
576293501 — BEAM 1.15 m
531140664 — PLUG
531140743 — SCREW
576293701 — BASE Base assy.
531119524 — SCREW K6S 10x20 10.9 fzb
576312201 — LID COVER
576614001 — WASHER SS 35x45x2.5
576312001 — SHAFT
531122458 — WASHER
720135406 — PARALLEL PIN ISO 2338 TYPE A 6x22 UH SS
531119203 — SCREW ISO 4017 M 12 X 30 ZPB
576311601 — WHEEL BRACKET Lower Welding
725254351 — SCREW EHHM ISO 4014 M 12 X 55 8.8 ZPB
576614501 — SCREW MC6S 12x35 12.9
576371801 — COVER METAL
725255251 — SCREW EHHM ISO 4014 M 12 X 100 8.8 ZPB
579659801 — PULLEY ASSY
576312501 — WHEEL BRACKET Lower Assy
576313201 — SHAFT
576313601 — WASHER
576313101 — SHAFT
576312901 — WHEEL BRACKET Upper Welding
510139101 — SCREW MC6S M10x180 12.9
531119570 — PLUG GL 48x3-4
576313701 — WHEEL ASSY Wheel bracket upper assy
540113301 — WHEEL Wire
576615101 — CLIP Circlip SGH62
738210704 — BALL BEARING SINGLE ROW - 10 6007-2RS1
576614301 — DUST SEAL Seal washer Z007
576294701 — SHAFT
581073801 — FLANGE
576294801 — DAMPER RUBBER
725644951 — SCREW IHCSFM M8x16 10.9 ZPB
732251601 — HEXAGON LOCKING NUT ISO 7040 M6 8 ZPB. NF
734115201 — WASHER ISO 7089 6.4x12x1.6 St 200HV ZPB
576295301 — WHEEL RIM
728645105 — SCREW IHSETM M8x20 St TBO
576294901 — BUSH GUIDE
576295101 — HUB
531120050 — DRIVING RING
587701501 — RUBBER RING
531119589 — SCREW ISO 7380-1 M 6 X 20 ZPB
581073901 — FLANGE
531119225 — SCREW MC6S 12X30
576294301 — DRIVING PULLEY ASSY
581118701 — BRACKET
581118801 — ARM
581118901 — WASHER
576365201 — COVER WHEEL
576314401 — LID COVER
725253271 — SCREW EHHM ISO 4017 M12x20 8.8 ZPB
576314101 — SHAFT
576314201 — LID COVER
531119181 — WASHER 10.5X22
725250571 — SCREW EHHM ISO 4017 M 10 X 70 8.8 ZPB
581315901 — PULLEY Assy
586538402 — WHEEL ASSY Pivot wheel, slot
531119205 — SCREW M6S 12X35
588074902 — BRACKET OPEN WITH SLOT
531119388 — SCREW DIN 7984 M 4 X 8 8.8 ZPB
586538001 — LOCKING SCREW
577315301 — NUT DIN633 M12
725549501 — SCREW IHSCM ISO 4762 M 10 X 30 8.8 ZPB
577401101 — NIPPLE GREASE
577017001 — BEARING
725532301 — SCREW IHSCM M5x8 8.8 ZPB
577017101 — RING
586538301 — LID COVER
531119208 — SCREW ISO 4014 M 5 X 12 8.8 ZPB
577016901 — FORK
531119201 — SCREW M6S 10X75
732252001 — HEXAGON LOCKING NUT ISO 7040 M10 8 ZPB. NF
577017301 — SHAFT
576341801 — GUIDE RAIL
576417001 — BLOCK Locking Block
576341101 — SUPPORT
725536801 — SCREW IHSCM ISO 4762 M 6 X 16 8.8 ZPB
531118218 — QUICK COUPLING MALE 134111M
576647601 — SEAL GEKA NBR (klokopplingspackning)
531119337 — PLUG VSTI M10x1
576417301 — HOOK
740382701 — SEALING WASHER 13.7x20.6 St ZPB /RUBBER
731432001 — HEXAGON THIN NUT ISO 4035 M10 04 ZPB
725644751 — SCREW IHCSFM M8x12 10.9 ZPB
725250151 — SCREW EHHM ISO 4014 M10x50/26 8.8 ZPB
576831301 — WING BOLT GN431-36-M10-40
531123095 — HOSE
576421601 — HOLDER ASSY Cover holder
576432401 — WASHER
576343701 — MOUNTING PIPE welding
734116301 — WASHER ISO 7089 8.4x16x1.6 St 200HV ZPB
734118601 — WASHER ISO 7089 17x30x3 St 200HV ZPB
576342301 — HOLDER ASSY Welding
732252271 — HEXAGON LOCKING NUT ISO 7040 M12 10 ZPB. NF
732251801 — HEXAGON LOCKING NUT ISO 7040 M8 8 ZPB. NF
576343001 — COVER
576342801 — COVER with bracket
576342001 — HOLDER ASSY
576647801 — PEN
576338601 — SHUTTER
531122343 — ATTACHMENT STRAP
576339101 — HINGE
725545501 — SCREW IHSCM M8x30 8.8 ZPB
576340301 — KNOB TURNING ASSY
576615201 — PLUG GL14
725633751 — SCREW IHCSFM M5x35 10.9 ZPB
576648001 — BLOCK
576338501 — BEARING SLEEVE
504909113 — FOOT PLATE
734114601 — WASHER M5 ISO 7089 5.3x10x1 St 200HV ZPB
732251401 — HEXAGON LOCKING NUT ISO 7040 M5 8 ZPB. NF
544280001 — SPRING PIN 4x16mm
576340701 — SCREW
541404909 — HANDLE
576647301 — STRAP ELASTIC Kapellstropp T-stege 3 öglor Kapellstropp T-stege 3 öglor
576338401 — COVER SLIDING
576329401 — GUARD Welding
576328101 — WHEEL GUARD Assy
576341201 — GUARD DRIVING PULLEY
576341501 — SCREW
576341601 — HOLDING DEVICE
576920401 — NUT FLANGE
531119211 — SCREW M6S 6X16
531119436 — LOCKING PIN
576647501 — BAND
576920701 — TUBE
576920601 — SHAFT
505150801 — WASHER 7x28x2
531119510 — SCREW K6S 6X10
576341001 — DRIVING PULLEY GUARD
531140627 — WASHER
531119007 — WHEEL 300R20/75
531140623 — PEN KLAPP
576599801 — SHAFT Wheel shaft
576546201 — WHEEL ASSY
531140940 — SPANNER UTAN GREPP
531119065 — WRENCH 18 mm
531119207 — SCREW M6S 12X45
576340601 — BRACKET for guard
531119014 — CLAMP HOSE 13-20
531118325 — NIPPLE HOSE 1312
531118219 — QUICK COUPLING FEMALE 1300UV
576546101 — WATER CONNECTOR
576653101 — FIXTURE
