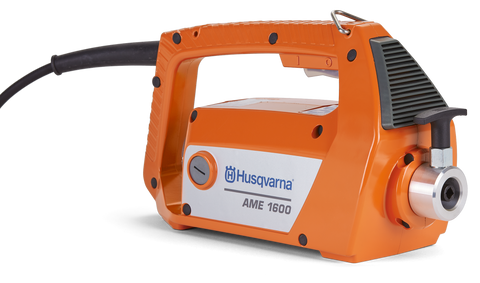

Husqvarna AME 1600 | DRIVE UNIT AME 1600 | 110 V | 1 ph | 50/60 Hz | NA | 967857801
Part Number: 967 85 78-01 (967857801)
The Husqvarna AME 1600 is a portable electric drive unit engineered for use with the modular AT series flex-shaft concrete vibrators. This unit operates on 110 V, 1 ph, 50/60 Hz power. It is designed to provide rapid acceleration through instant power delivery, while high-quality internal components and integrated oil lubrication systems are utilized to extend operational lifespan and minimize total life cycle costs.
- Article Number: 967857801 / 967 85 78-01
- Power Supply: 110 V, 1 ph, 50/60 Hz
- Compatibility: AT series modular flex-shaft concrete vibrators
Product Features
Long service life
Oil lubrication, dust foam filter and over-load protection increase the service life and helps reduce lifecycle costs.
Easy to service
The service-friendly design includes easy-to-access carbon brushes with automatic cut-off to protect the motor.
Modular design
The 3-step modular design offers high versatility with several combinations of Superflex hoses and AT-heads depending on the current job requirements.
Ergonomic design
The handle is designed to reduced vibrations in your hands and arms.
Easy to assemble and use
Comes equipped with quick couplings for easy assembly, and a shoulder strap for increased comfort and convenience.
| Dimensions | |
|---|---|
| Cable length | 16 ft |
| Weight | 13.5 lbs |
| Packaging length (Calc) | 7.874 in |
| Packaging width (Calc) | 18.189 in |
| Packaging height (Calc) | 10.276 in |
| Article gross weight (Calc) | 15.236 lbs |
- 595933101 — HOUSING Set
- 598443301 — SCREW SELF-TAPPING 4,8x22 DIN 7981
- 598763601 — SEALING PLUG АМЕ 1600
- 594634101 — BRUSH 230 V, 50-60HZ
- 594634201 — BRUSH HOLDER 115 V 50-60 HZ 2
- 594634301 — BRUSH HOLDER
- 595112401 — NUT DIN 985 M5x08
- 594634401 — FRAME Motor Rear
- 594862801 — BEARING Rear 62012Z1
- 594634501 — STATOR 230V 50-60HZ
- 594634601 — ROTOR 230V50-60HZ
- 595491701 — FRAME Spacer
- 594747901 — WASHER AET 5,3 DIN 912
- 598443501 — BOLT ALLEN HEAD M5x100 DIN 912 8.8
- 595491801 — FRAME Motor Front
- 598443601 — O-RING NBR 36x2
- 595491901 — CONNECTOR Transmission
- 594634701 — DRIVER Square
- 594634801 — PLUG Connection
- 595492001 — SPRING Connection
- 595204401 — NUT
- 594634901 — CONNECTION Handle
- 595492101 — BEARING Front, 60032Z1
- 598443502 — BOLT M 4×8 DIN 84
- 594747902 — WASHER 4,3 A DIN 6798
- 595204501 — PLATE
- 595492201 — COVER Frontair
- 594635101 — PROTECTION Thermal
- 595493801 — FAN
- 594635001 — SWITCH Set, Electronic
- 598445001 — HEAT PROTECTOR 115 V MODEL V7AM-029A5 VICTOR ELEC, CO
- 595525901 — HOLDER Coated Core-tech
- 595204701 — RING
- 598443603 — O-RING Continuous Ø1,5mm x 1 roll 15M NBR Rubber
- 595204801 — DRIVE BELT
- 595492401 — CABLE Cover Plate
- 595492501 — CABLE Clamp
- 598443302 — SCREW SELF-TAPPING 3,9x22 DIN 7982
- 595204901 — CABLE
- 595205001 — PLUG
- 595205101 — PLUG
- 598443303 — SCREW SELF-TAPPING 3,5x16 DIN 7981
- 595492801 — COVER Rear Air
- 594635201 — AIR FILTER
- 598443602 — O-RING BRUSHHOLDER CAP 23x2 RING NBR
- 594635301 — BRUSH Cap
- 594635401 — CONNECTION Handle Kit
- 594635501 — MOTOR Set, 230 V 50-60 HZ KIT
- 595492901 — MOTOR 50, set, 115 V, 50-60 Hz, Kit
- 595204301 — STATOR
- 595491601 — ROTOR 52, 115 V, 50-60 Hz.
- 595492601 — CABLE Plug Set
- 595492701 — PLUG
- 598763701 — CABLE and PLUG 115 V USA
- 598763801 — PLUG 115 V USA
- 598527401 — HOSE complete Superflex 10
- 594511901 — SHAFT Flexible, 1 M AT
- 595046401 — O-RING
- 598527402 — HOSE complete Superflex 20
- 594505901 — SHAFT Flexible, 2 M
- 598527403 — HOSE COMPLETE SUPERFLEX 30
- 594506201 — SHAFT Flexible
- 598527404 — HOSE complete Superflex 40
- 594506001 — SHAFT Flexible, 4 M
- 594504701 — CAP
- 594529301 — BEARING
- 594504901 — ECCENTRIC
- 594269201 — SEALING
- 594504501 — CAP Screw
- 594504801 — TUBE
- 594505001 — CAP
- 595041101 — O-RING
- 594505201 — CONNECTOR Tube
- 594529401 — BEARING
- 594505301 — ECCENTRIC
- 594505101 — TUBE
- 594505401 — CAP
- 595046501 — O-RING
- 595467801 — CONNECTOR Tube
- 594529501 — BEARING
- 594505501 — ECCENTRIC
- 595467701 — TUBE
- 594505601 — CAP
- 594267001 — O-RING
- 594371401 — SLEEVE
- 594371301 — ROLLER BEARING Roller
- 594505701 — ECCENTRIC AT 59
- 595183301 — TUBE
- 595467901 — CONNECTOR Tube
- 594292801 — BEARING KIT AT29
- 594292901 — BEARING KIT AT39
- 594293001 — SERVICE KIT Maintenance Kit
- 594795301 — BEARING Kit-AT59
- 598444703 — STICKER Husqvarna Right
- 598444704 — STICKER Husqvarna Left
- 598444702 — STICKER Safety PVC ORAJET MATERIAL
