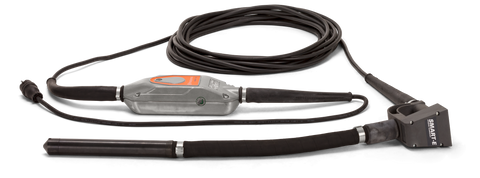

Husqvarna SMART 40 E | POKER SMART 40 E | 115 V | 1 ph | 50/60 Hz | NA | 967855809
Part Number: 967 85 58-09 (967855809)
The Husqvarna SMART 40 E is a high-frequency electronic concrete vibrator engineered for professional construction applications. This unit features an integrated frequency converter, providing consistent performance and reliability. Designed for optimal concrete consolidation, it delivers high centrifugal force and stable amplitude to minimize dips in concrete slump. The ergonomic pistol grip handle is specifically configured to reduce hand and arm vibration during the processing of floor slabs.
Specifications:
- Model: SMART 40 E
- Article Number: 967855809 / 967 85 58-09
- Voltage: 115 V
- Phase: 1 ph
- Frequency: 50/60 Hz
Product Features

Powerful and reliable
Constant vibrations at 12,000 vpm ensures high centrifugal force, stable speed and high amplitude, which results in excellent concrete vibration with fewer dips in any type of concrete slump.

Extend your reach
Fifteen meters of cable provide you with exceptional reach around the worksite.

Keep vibrations in the concrete
The innovative motor-in-head design and the de-vibrated handle ensure vibrations to stay inside the concrete, where they belong, instead of in your hands and arms.

Smart ergonomics
The ergonomic pistol grip handle is designed to further reduce vibrations in your hands and arms.

Plug-and-work
Built-in frequency converter means any regular wall socket with the appropriate voltage is all you need to plug in, power up and start working.

Less noise, no emissions
By using electricity instead of petrol, this vibrator produces no fumes and less noise.

Fixed green light means ready
The power unit features a LED indicator showing the operational status of the vibrator.
| Dimensions | |
|---|---|
| Tube diameter | 1.575 in |
| Packaging length (Calc) | 30.709 in |
| Packaging width (Calc) | 22.047 in |
| Packaging height (Calc) | 5.512 in |
| Article gross weight (Calc) | 34.833 lbs |
- 594369601 — PLUG Switch
- 595162601 — PLUG
- 595468901 — CABLE ELECTRIC HO7RN-F 3x2.5 SANSV/J 1m
- 598479101 — WIRE 1 PCE = 0.4 M 4812052792 RED COLOR
- 594255201 — CLAMP
- 594256801 — SHEET Flexible
- 594619301 — PISTON Gland PG16 - 19716 (IP67)
- 594413102 — CABLE 1 PCE = 15 M OF 4700368960 / 594413101
- 594619801 — UNIT Electronic
- 595196501 — CLIP
- 594630701 — WIRE Earth, Complete
- 594853601 — UNIT Spade-D 4 Blue
- 594286101 — SCREW TC M4X8 LAITON
- 594621401 — O-RING
- 594620301 — SCREW
- 547163701 — SCREW BOSSARD: 3271308 BN 13916 M5X30 T25 450HV
- 594626801 — VIBRATING HEAD SMART 40 | 230 V
- 595525301 — VIBRATING HEAD SMART 40 | 115 V
- 594620201 — HANDLE Eye Piece
- 594622901 — COVER BOX CPL
- 594286401 — CLAMP
- 594413103 — CABLE 1 PCE = 10 M OF 4700368960 / 594413101
- 595145901 — WIRE
- 594287703 — CABLE 1 PCE = 0.4 M of 4700186523 / 594287701
- 594285902 — WIRE 1 PCE = 0.4 M of 4700185909 / 594285901
- 594527803 — CABLE 1 PCE = 0.8 M of 4700900061 / 594527801
- 595118501 — SLEEVE
- 594257501 — INSULATION THERMO-R4 LG45 0.05 M
- 594794701 — CLIP Cable, D 4
- 594276701 — TERMINAL
- 594257101 — HOSE 1 Meter
- 594254903 — HOSE 1 PCE = 0.35 М 4700101697 / 594254901
- 595141401 — RIVET
- 594281701 — CLAMP
- 594388404 — HOSE 1 PCE = 0.5 M of 4700366152 / 594388401
- 594377101 — ABSORBER Shock assy
- 594380301 — NUT
- 594500801 — SCREW TOLE TCLF N? 8 4,2X25
- 594500901 — SCREW TOLE TCF N? 8 4,2X38
- 594626501 — COVER
- 595047501 — O-RING
- 594622501 — HANDLE
- 594620001 — PLATE
- 594620101 — SWITCH
- 594623201 — SCREW
- 594619901 — DIAPHRAGM Rubber Membrane
- 594626901 — VIBRATING HEAD SMART 48 | 230 V
- 594627001 — VIBRATING HEAD SMART 48 | 115 V
- 594627101 — VIBRATING HEAD SMART 56 | 230 V
- 594627201 — VIBRATING HEAD SMART 56 | 115 V
- 594290101 — CAP
- 595156701 — CAP ELASTOMER END 40 mm
- 594290301 — BEARING
- 594286501 — SCREW H M 5X18 CL8.8 DIN933
- 594399301 — WASHER ZM5
- 594290201 — ECCENTRIC
- 594262301 — ROTOR
- 594272301 — BUSHING
- 594621501 — TUBE Stator SMART40 230V
- 594860201 — TUBE Stator SMART40 115V
- 594272201 — BEARING Needle
- 594621601 — BEARING Holder
- 595149001 — HOSE
- 594268001 — O-RING 33,05X1,78 70SH
- 595156001 — NIPPLE
- 594272701 — SCREW C S M 4X 5 LAITON DIN84A
- 594289001 — GASKET RUBBER
- 594290401 — PROTECTION Flexible Sheating
- 594287501 — RING Thrusting
- 594287301 — SCREW Thrust
- 594289401 — CAP
- 595156801 — CAP ELASTOMER END 48 mm
- 594289601 — BEARING
- 594286301 — RETAINER RING EXT D 17X1,5 RENF
- 595466301 — SCREW
- 594399401 — WASHER ZM6 NFE25-511 BN80598
- 595523601 — ECCENTRIC
- 594289501 — ROTOR
- 594621701 — TUBE Stator SMART48 230V
- 595196401 — TUBE
- 594265001 — BEARING Holder
- 594277802 — HOSE 1 PCE = 0.08 M OF 4700183321 / 594277801
- 594266901 — O-RING 35X2 70SH
- 594264901 — NIPPLE
- 594289101 — CAP
- 595029601 — CAP ELASTOMER END 56 mm
- 594289301 — BEARING
- 594278001 — RETAINER RING EXT D 20X1,75 RENF
- 595053801 — SCREW CAP, M6-1X30 8.8
- 595523701 — ECCENTRIC
- 594289201 — ROTOR
- 594273701 — BUSHING
- 594621801 — TUBE Stator SMART56 230V
- 594621901 — TUBE Stator SMART56 115V
- 594273601 — BEARING NEEDLE
- 594622001 — BEARING Holder
- 594860301 — NIPPLE
- 594628601 — HANDLE CPL
- 594627501 — DECAL
- 595504901 — LABEL HV Test
- 596311901 — DECAL Smart 48 E
- 596312001 — DECAL Smart 56 E
- 596311801 — DECAL Smart 40 E
- 594622601 — DECAL
