Husqvarna : *DCR 300 CRUSHER Part No. 966786401
Part Number: 966 78 64-01 (966786401)

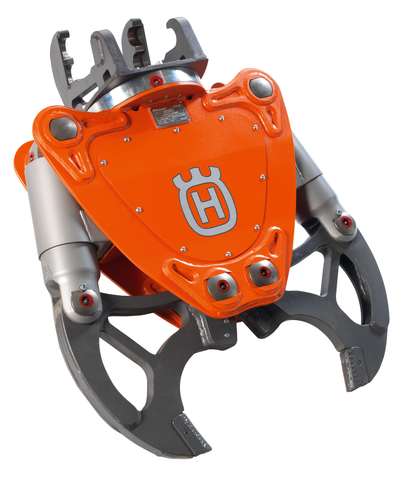

The Husqvarna DCR 300 (Article 966786401) is a high-capacity concrete crusher engineered for integration with Husqvarna demolition robots. This unit is designed to provide efficient material reduction in demanding environments, capable of processing concrete walls up to 16 inches in thickness.
Applications:
- Demolition of concrete and brick structures
- Removal of staircases and roofing systems
- Precision demolition in sensitive indoor environments
| Hydraulics | |
|---|---|
| Hydraulic oil flow | 26.42 gal/min |
| Product data | |
| Crushing force | 4,413 N |
| Cutting force | 14,020 N |
| Rotation angle | 360 ° |
| Incoming pressure, max | 2,900 psi |
| Operating pressure, max | 8,252 psi |
| Dimensions | |
| Jaw depth | 7.75 in |
| Jaw opening, min | 1 in |
| Jaw opening, max | 17 in |
| Rebar size, max | 1.18 in |
| Product size length | 44.3 in |
| Product size width | 34.8 in |
| Product size height | 13 in |
| Weight | 604 lbs |
| Packaging length (Calc) | 47.244 in |
| Packaging width (Calc) | 31.496 in |
| Packaging height (Calc) | 21.457 in |
| Article gross weight (Calc) | 674.615 lbs |
- 510268001 — QUICK COUPLING 3/4" MALE PLK4.2519.113
- 510268101 — QUICK COUPLING 3/4" FEMALE PLT4.2519.112
- 589017101 — ADAPTER STRAIGHT O: 1-3/16 - G: 3/4 DUNLOP 1206955
- 585485309 — HOSE ASSY 1-3/16", 3/4", 1-3/16", ORFS L=560mm
- 588029601 — FILTER HYDRAULIC OIL, IN-LINE IKRON, HF705-20.070-SB060-GE-B
- 588029701 — FILTER ELEMENT, 60µm IKRON, HEK80-20.070-SB060
- 585542703 — HOSE ASSY 1-3/16", 45°, 3/4", 1-3/16", ORFS L=630mm
- 579009801 — LUBRICATION NIPPLE EDILGRAPPA, ART NO. 1.60.256
- 725549101 — SCREW IHSCM ISO 4762 M 10 X 20 8.8 ZPB
- 579010101 — CYLINDER COVER DCR 300
- 579009701 — SHAFT CYLINDER - JAW
- 536339401 — HYDRAULIC CYLINDER DCR 300 Edilgrappa - 150.03811
- 579009501 — BLADE BUSHING CYLINDER - JAW
- 579009301 — CUTTER REINFORCING BAR
- 579018501 — CRUSHER TIP
- 579064701 — SPRING PIN KIT TIP FASTENER
- 579010001 — PLATE BOOSTER PROTECTION EDILGRAPPA 1.50.1574E
- 579009401 — BLADE BUSHING JAW - FRAME
- 579010401 — SHAFT CYLINDER - FRAME
- 579010202 — SHAFT JAW - FRAME EDILGRAPPA ART NO 1.10.5023
- 579010801 — BEARING DCR 300 EDILGRAPPA, ART NO. 1.50.1765
- 586479401 — WASHER Ø12mm, SCHNORR EDILGRAPPA, ART NO. 1.60.3091
- 579026401 — SCREW IHSCM M12x40 8.8
- 725549301 — SCREW IHSCM M10x25 8.8 ZPB
- 589972301 — ADAPTER PLATE DCR 300 Edilgrappa 150.03133
- 734117201 — WASHER ISO 7089 10.5x20x2 St 200HV ZPB
- 725545301 — SCREW IHSCM M8x25 8.8 ZPB
- 590021601 — BOOSTER COMPLETE DCR 300 150.03164_0
- 579010301 — NUT JAW - FRAME
- 579025801 — SCREW IHSCM M8x14 8.8 ZPB
- 579010501 — NUT CYLINDER - FRAME
- 586478901 — SCREW M8x20 8.8 EDILGRAPPA, ART NO. 1.60.1235
- 579018801 — JAW DCR 300
- 579026501 — CRUSHER PAD DCR 300
- 580267501 — SEAL KIT DCR 300 CYLINDER NPU sealings
- 536339501 — SEAL KIT DCR 300 CYLINDER Edilgrappa - 150.03787
- 501745801 — GABLE PISTON DCR 300 EDILGRAPPA ART NO 1.10.5033
- 501745301 — LOCKING RING EDILGRAPPA ART NO 1.10.5091
- 588406901 — BUSHING CYLINDER, KIT, 2pcs EDILGRAPPA ART NO 1.50.1725HUE
- 588195701 — TOOL HOLDER KIT, DCR 300 BOOSTER EDILGRAPPA ART NO 1.50.2790
- 595896801 — PIN SCREW CRUSHER TIP DCR 300, Edilgrappa 110.05607
- 595897201 — THREAD INSERT NUT CRUSHER TIP Edilgrappa 110.05570
- 592658701 — STICKER KIT, DCR 300 EDILGRAPPA 150.03234
- 586427801 — BEARING KIT FLANGE
- 579021002 — HOSE LOW PRESSURE L=592mm EDILGRAPPA 1.60.1246
- 579022401 — MANIFOLD UPPER
- 579019601 — CHECK VALVE HAWE RK2
- 579022701 — SWIVEL KIT WITH SEALINGS & SLIDE RING
- 590014401 — SWIVEL KIT WITH SEALINGS & SLIDE RING Edilgrappa 150.03137
- 579022501 — SLIDE RING KIT WITH SEALINGS
- 579022801 — SWIVEL BRACKET DCR
- 579042301 — SCREW M10x20 8.8 DIN 7984
- 579022201 — VALVE PRESSURE REDUCING
- 579022001 — VALVE SEQUENCE VALVE
- 579021102 — HOSE LOW PRESSURE L=621mm EDILGRAPPA 1.60.1247
- 579049001 — ADAPTER 3/8" KIT WITH SEALING
- 579026701 — PIPE RETURN FLOW
- 579021501 — ADAPTER KIT WITH SEALING
- 579019101 — SEALING 1/2
- 579020801 — HOSE HIGH PRESSURE
- 579042401 — SCREW IHSCM M10x50 12.9
- 579011001 — MANIFOLD LOWER, BOOSTER
- 579098701 — PLUG 1/4" GAS
- 579098801 — SEALING 1/4 GAS
- 579019901 — O-RING INNE DIA=Ø=23, t=2
- 579021201 — ADAPTER
- 579021701 — BOOSTER
- 579021601 — SUPPORT RING
- 579021901 — ADAPTER
- 579021801 — ADAPTER PLATE BOOSTER
- 579021401 — PIPE
- 579021301 — VALVE PRESSURE RELIEF VALVE
- 579019201 — PLUG 1/2"
- 579019301 — CHECK VALVE PILOT OPERATED
- 579019801 — O-RING INNER DIA=23.39, t=3.53
- 579037701 — PLUG VALVE STOPPER
- 579020901 — HOSE HIGH PRESSURE
- 501720902 — WASHER RUBBER-STEEL 3/8" DUNLOP 1221818
- 596528201 — DUST REDUCTION DCR 100/300/500
- 506675402 — SCREW EHHFM M10x40 8.8 FZB
- 589010901 — ADAPTER STRAIGHT O: 9/16 - G: 1/4 DUNLOP 1206956
- 585484215 — HOSE ASSY 9/16", 1/4", 9/16", ORFS L=295mm
- 582313703 — HOSE ASSY 11/16", 90°, 1/4", 9/16", ORFS L=200mm
- 589018001 — ADAPTER T 3x O: 11/16 DUNLOP 1207601
- 593360001 — BRACKET WATER NOZZLE DCR WELD ASSY
- 594059401 — NOZZLE FULL CONE 30° Hansa Engineering WL 1/2 30° 1/8" 316SS
- 585542203 — HOSE ASSY 11/16", 3/8", 11/16", ORFS L=1715mm
- 582905801 — ADAPTER STRAIGHT O: 11/16 - O: 11/16 DUNLOP 1207587
- 582905601 — ADAPTER STRAIGHT Int. G 1/4 - Int. O 11/16 DUNLOP 1216249
- 501720901 — WASHER RUBBER-STEEL 1/4" DUNLOP 1221809
- 531118354 — NIPPLE 18110 with net
