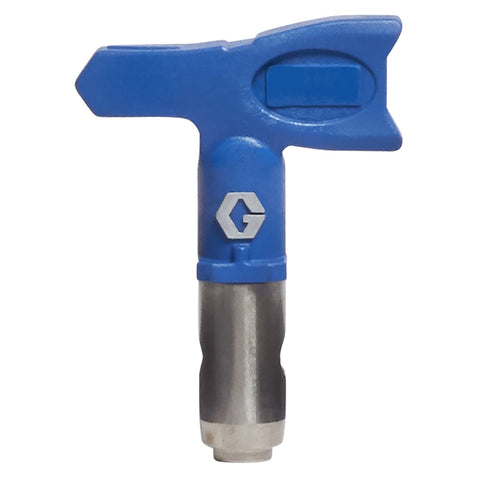

Graco | LTX833 RAC X SwitchTip, 833
Graco
Model: LTX833
The Reverse-A-Clean (RAC) 833 RAC X SwitchTip provides a 16 to 18 inch fan spray with a 0.033 inch orifice. The tip can be reversed to clear clogs.
This tip is suitable for residential, commercial, and industrial applications.
- Longest-lasting fan pattern
- Consistent spray pattern for a high-quality finish
- Tip size numbers are large and raised for easy legibility, even when covered in paint
- Locking tab secures the tip in the guard
- Tip snaps into spray or reverse position
- OneSeal tip gasket requires no tools for installation
- Solvent seal option is available for use with extremely hot solvents
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955268166 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.25 IN | 13.335 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.033 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 16 |
| Maximum Fan Width (mm) | 457 |
| Tip Type | Airless |
| Pattern Size (in) | 16 to 18 |
| Maximum Fan Width (cm) | 40 |
| Maximum Flow Rate (L/min) | 4.43 |
| Minimum Fan Width (in) | 16 |
| Minimum Fan Width (mm) | 406 |
| Pattern Size (mm) | 406.4 to 457.2 |
| Model | RAC X |
| Series | LTX SwitchTip |
