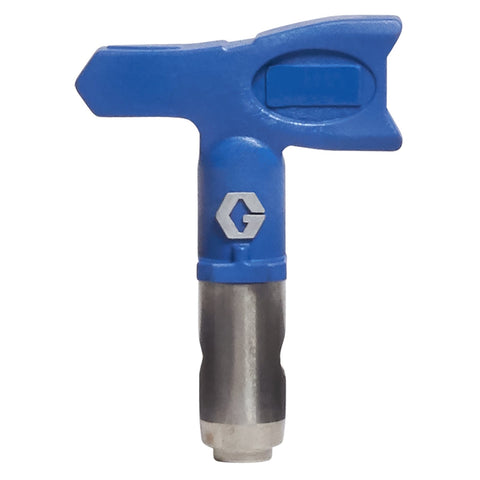

Graco | LTX643 RAC X SwitchTip, 643
Graco
Model: LTX643
The Reverse-A-Clean (RAC) 643 RAC X SwitchTip provides a 12 to 14 inch fan spray with a 0.043 inch orifice. This tip can be reversed to clear clogs.
Suitable for residential, commercial, and industrial applications.
-
Market-Leading Tip
- Offers the longest-lasting fan pattern.
- Delivers a high-quality finish with a consistent spray pattern.
-
Clear Tip Size Identification
- Large, raised tip size numbers remain legible even when covered in paint.
-
Advanced Tip Design
- A locking tab ensures the tip is securely held in the guard.
- Allows the tip to be snapped into either the spray or reverse position.
- The OneSeal tip gasket installs without tools.
- A solvent seal is available for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955267954 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.25 IN | 13.335 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.043 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 12 |
| Maximum Fan Width (mm) | 356 |
| Tip Type | Airless |
| Pattern Size (in) | 12 to 14 |
| Maximum Fan Width (cm) | 30 |
| Maximum Flow Rate (L/min) | 7.50 |
| Minimum Fan Width (in) | 12 |
| Minimum Fan Width (mm) | 305 |
| Pattern Size (mm) | 304.8 to 355.6 |
| Model | RAC X |
| Series | LTX SwitchTip |
