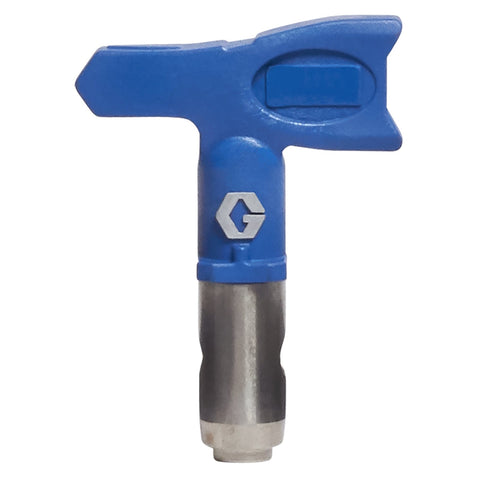

Graco | LTX543 RAC X SwitchTip, 543
Graco
Model: LTX543
The RAC 543 RAC X SwitchTip provides a 10 to 12 inch fan spray with a 0.043 inch orifice. It can be reversed to clear clogs.
Suitable for residential, commercial, and industrial applications.
-
Market-Leading Tip
- Delivers the longest-lasting fan pattern.
- Ensures a high-quality finish with a consistent spray pattern.
-
Easy Size Identification
- Large, raised tip size numbers remain legible even when covered with paint.
-
Advanced Tip Design
- A locking tab secures the tip within the guard.
- Allows the tip to be set in either the spray or reverse position.
- The OneSeal tip gasket installs without tools.
- A solvent seal is available for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955267725 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.31 IN | 13.487 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.043 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 10 |
| Maximum Fan Width (mm) | 305 |
| Tip Type | Airless |
| Pattern Size (in) | 10 to 12 |
| Maximum Fan Width (cm) | 25 |
| Maximum Flow Rate (L/min) | 7.50 |
| Minimum Fan Width (in) | 10 |
| Minimum Fan Width (mm) | 254 |
| Pattern Size (mm) | 254 to 304.8 |
| Model | RAC X |
| Series | LTX SwitchTip |
