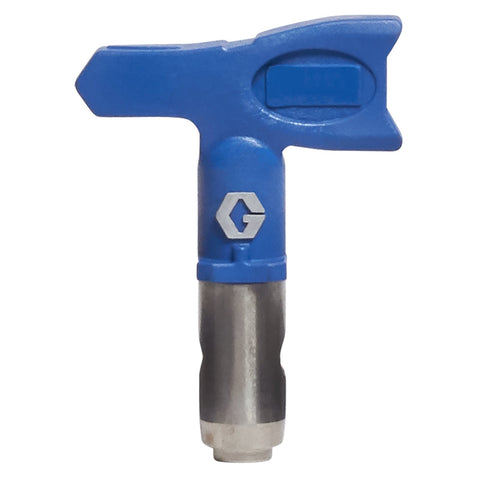

Graco | LTX517 RAC X SwitchTip, 517
Graco
Model: LTX517
The Reverse-A-Clean (RAC) 517 RAC X SwitchTip features a 10 to 12 inch fan pattern and a 0.017 inch orifice. The tip can be reversed to clear clogs.
This product is suitable for residential, commercial, and industrial applications.
- Longest-lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large, raised tip size numbers are always legible, even when covered with paint
- Locking tab ensures the tip stays securely in the guard
- Tip snaps into spray or reverse position
- OneSeal tip gasket installs without tools
- Solvent seal is available for use with extremely hot solvents
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955889491 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.31 IN | 13.487 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .1 LBS | 0.045 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.017 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 10 |
| Maximum Fan Width (mm) | 305 |
| Tip Type | Airless |
| Pattern Size (in) | 10 to 12 |
| Maximum Fan Width (cm) | 25 |
| Minimum Fan Width (in) | 10 |
| Minimum Fan Width (mm) | 254 |
| Pattern Size (mm) | 254 to 304.8 |
| Model | RAC X |
| Series | LTX SwitchTip |
