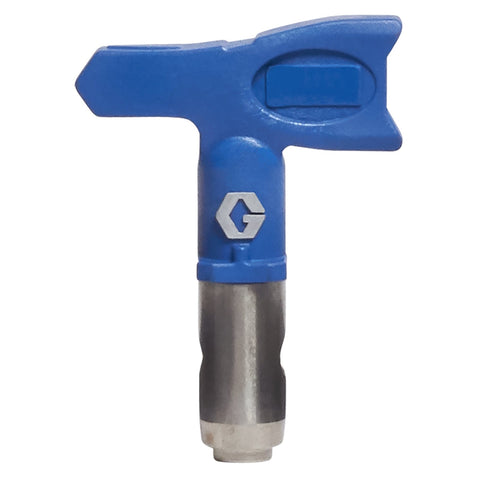

Graco | LTX423 RAC X SwitchTip, 423
Graco
Model: LTX423
The Reverse-A-Clean (RAC) 423 RAC X SwitchTip provides an 8 to 10 inch fan spray with a 0.023 inch orifice. The tip can be reversed to clear clogs.
Suitable for residential, commercial, and industrial applications.
-
Highest Quality Tip
- Maintains a long-lasting fan pattern.
- Delivers a high-quality finish with consistent spray.
-
Clear Tip Size Identification
- Large, raised numbers for tip size are always visible, even when covered in paint.
-
Advanced Tip Design
- A locking tab secures the tip within the guard.
- Allows the tip to be positioned in spray or reverse mode.
- The OneSeal tip gasket installs without tools.
- A solvent seal is available for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955091177 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.31 IN | 13.487 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.023 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 8 |
| Maximum Fan Width (mm) | 254 |
| Tip Type | Airless |
| Pattern Size (in) | 8 to 10 |
| Maximum Fan Width (cm) | 20 |
| Maximum Flow Rate (L/min) | 2.16 |
| Minimum Fan Width (in) | 8 |
| Minimum Fan Width (mm) | 203 |
| Pattern Size (mm) | 203.2 to 254 |
| Model | RAC X |
| Series | LTX SwitchTip |
