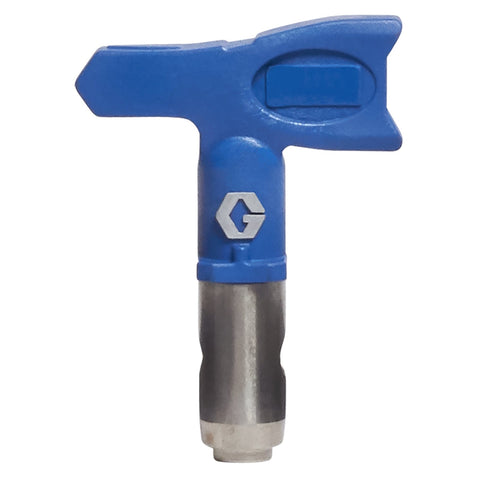

Graco | LTX421 RAC X SwitchTip, 421
Graco
Model: LTX421
The Reverse-A-Clean (RAC) 421 RAC X SwitchTip features an 8 to 10 inch fan pattern and a 0.021 inch orifice. The tip can be reversed to clear clogs.
Suitable for residential, commercial, and industrial applications.
- Long-lasting fan pattern and a high-quality finish with a consistent spray pattern.
- Tip size is easily identifiable with large, raised numbers that remain legible even when covered in paint.
- Superior tip design includes a locking tab for secure placement in the guard, a snap-in mechanism for spray or reverse positions, a tool-free OneSeal tip gasket, and an optional solvent seal for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955086654 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.31 IN | 13.487 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .11 LBS | 0.050 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.021 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 8 |
| Maximum Fan Width (mm) | 254 |
| Tip Type | Airless |
| Pattern Size (in) | 8 to 10 |
| Maximum Fan Width (cm) | 20 |
| Maximum Flow Rate (L/min) | 1.78 |
| Minimum Fan Width (in) | 8 |
| Minimum Fan Width (mm) | 203 |
| Pattern Size (mm) | 203.2 to 254 |
| Model | RAC X |
| Series | LTX SwitchTip |
