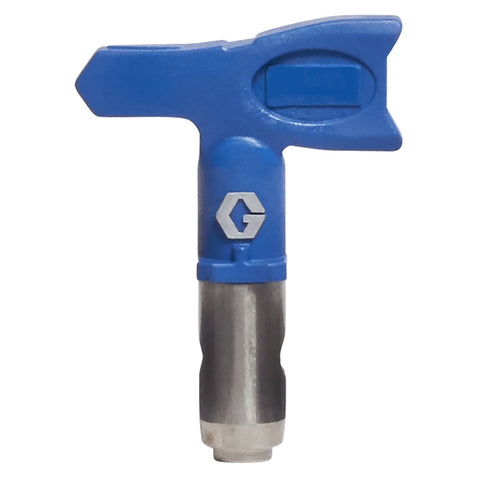

Graco | LTX327 RAC X SwitchTip, 327
Graco
Model: LTX327
The Reverse-A-Clean (RAC) 327 RAC X SwitchTip is engineered for applications requiring narrow spray patterns and the use of thicker materials. This 327 SwitchTip features a 0.027 inch orifice, producing a fan width of 6 to 8 inches. The tip can be reversed to effectively clear clogs.
This product is suitable for residential, commercial, and industrial applications.
- Longest-lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large, raised tip size numbers are always legible, even when covered with paint
- Locking tab ensures the tip remains securely in the guard
- Snaps the tip into either the spray or reverse position
- OneSeal tip gasket installs without tools
- Solvent seal is available for use with extremely hot solvents
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955267374 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.31 IN | 13.487 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.027 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 6 |
| Maximum Fan Width (mm) | 203 |
| Tip Type | Airless |
| Pattern Size (in) | 6 to 8 |
| Maximum Fan Width (cm) | 15 |
| Maximum Flow Rate (L/min) | 2.91 |
| Minimum Fan Width (in) | 6 |
| Minimum Fan Width (mm) | 152 |
| Pattern Size (mm) | 152.4 to 203.2 |
| Model | RAC X |
| Series | LTX SwitchTip |
