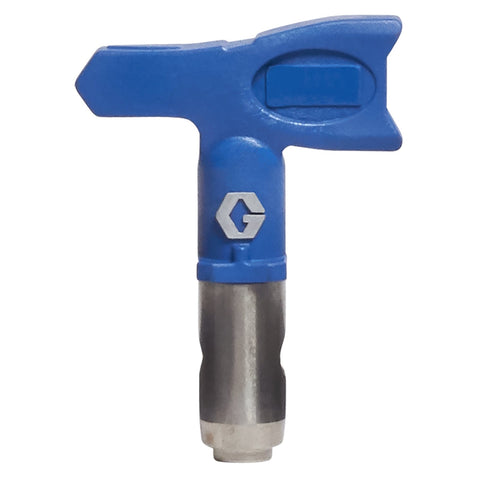

Graco | LTX317 RAC X SwitchTip, 317
Graco
Model: LTX317
The Reverse-A-Clean (RAC) 317 RAC X SwitchTip is engineered for precise application on narrow surfaces. It features a 0.017 inch orifice and produces a fan width of 6 to 8 inches. The tip can be reversed to easily clear blockages.
This tip is suitable for residential, commercial, and industrial applications.
-
Optimal Performance
- Delivers the longest-lasting fan pattern.
- Provides a high-quality finish with a consistent spray pattern.
-
Clear Size Identification
- Large, raised numbers indicate the tip size, ensuring legibility even when covered in paint.
-
Advanced Tip Design
- A locking tab secures the tip firmly within the guard.
- Allows for quick switching between spray and reverse positions.
- The OneSeal tip gasket installs without tools.
- A solvent seal option is available for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955889415 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.31 IN | 13.487 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.017 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 6 |
| Tip Type | Airless |
| Maximum Fan Width (cm) | 15 |
| Model | RAC X |
| Series | LTX SwitchTip |
