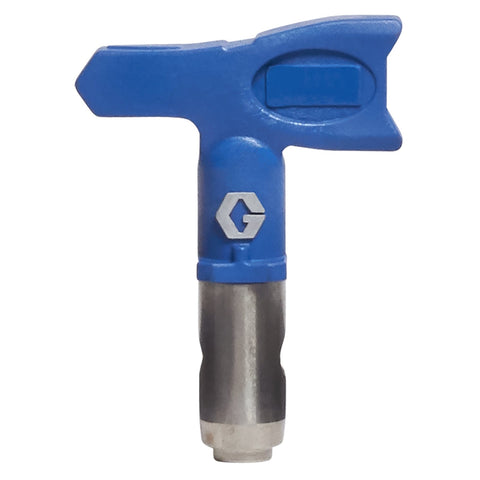

Graco | LTX219 RAC X SwitchTip, 219
Graco
Model: LTX219
The Reverse-A-Clean (RAC) 219 RAC X SwitchTip is designed for applications requiring narrower surfaces and thick materials. It features a 0.019 inch orifice and produces a fan width of 4 to 6 inches. The tip can be reversed to clear clogs.
Suitable for residential, commercial, and industrial use.
-
Market-Leading Tip Performance
- Provides the longest-lasting fan pattern.
- Delivers a high-quality finish with a consistent spray pattern.
-
Clear Tip Size Identification
- Large, raised tip size numbers remain legible, even when covered with paint.
-
Advanced Tip Design Features
- A locking tab ensures the tip is securely held in the guard.
- Allows the tip to be locked in either the spray or reverse position.
- The OneSeal tip gasket installs without tools.
- A solvent seal is available for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955091146 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.31 IN | 13.487 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.019 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 4 |
| Maximum Fan Width (mm) | 152 |
| Tip Type | Airless |
| Pattern Size (in) | 4 to 6 |
| Maximum Fan Width (cm) | 10 |
| Maximum Flow Rate (L/min) | 1.44 |
| Minimum Fan Width (in) | 4 |
| Minimum Fan Width (mm) | 102 |
| Pattern Size (mm) | 101.6 to 152.4 |
| Model | RAC X |
| Series | LTX SwitchTip |
