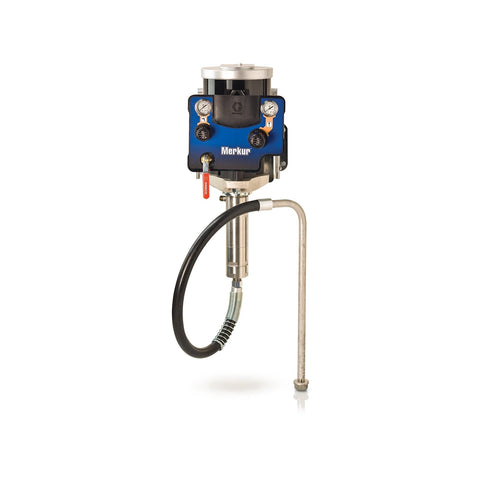

Graco | G48W03 48:1 Merkur Pump, 1.2 gpm (4.5 lpm) fluid flow, Wall Mount, Pump Air Controls, Suction Hose, Fluid Filter
Graco
Model: G48W03
This product is designed to enhance productivity, reduce operational costs, lower emissions, and deliver consistent, high-quality finishes for demanding applications.
- Demonstrated to offer superior performance and longevity compared to other pumps in its category.
- Features the most advanced air motor available on the market.
- Achieves increased efficiency through low air consumption.
- External access to the valve facilitates straightforward servicing and on-site replacement, thereby minimizing downtime.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955375345 |
| Division | IPD |
| Height | 22.8 IN | 57.912 CM |
| Length | 33.6 IN | 85.344 CM |
| Width | 18 IN | 45.720 CM |
| Volume | 7.98 FT3 | 0.226 M3 |
| Shipping Weight | 95 LBS | 43.091 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Convertible | Non-Convertible |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Outlet Size (mm) | 9.525 |
| Hose Inlet Diameter (cm) | 0.47625 |
| Hose Inlet Diameter (in) | 3/16 |
| Hose Inlet Diameter (mm) | 4.7625 |
| Includes | Pump Only Air Controls, Suction Hose, Fluid Filter |
| Maximum Flow Rate (L/min) | 4.5 |
| Maximum Hose Length (ft) | 25 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Working Pressure (psi) | 4800 |
| Maximum Working Pressure (kPa) | 33100 |
| Maximum Working Pressure (MPa) | 33.1 |
| Model | Merkur |
| Maximum Working Pressure (bar) | 331 |
| Weight (kg) | 35 |
| Maximum Working Pressure (kg/cm²) | 337.5 |
| Number of Guns | 0 |
| Mount Type | Wall Mount |
| Gun Technology | Bare Package |
| Gun Model | No Applicator |
| Product Type | Bare Package |
