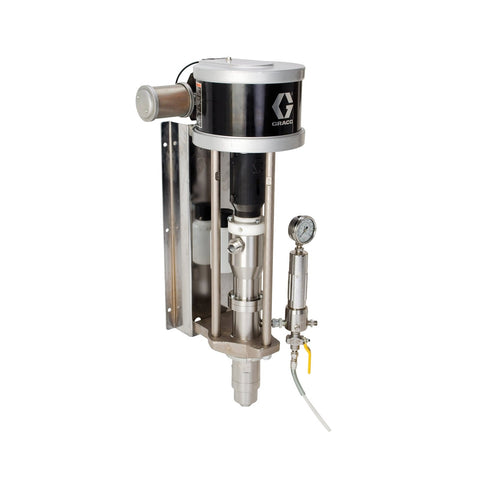

Graco | G23B17 Merkur Bellows 23:1 Ratio Pump Package with U-Cup Seal, Wall Mount, Fluid Filter
Graco
Model: G23B17
Graco's Merkur bellows piston pumps offer low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, ensuring high reliability for moisture-sensitive materials.
- Features the highest technology air motor available.
- Operates with low air consumption for improved efficiency.
- Boasts a simple air motor design with minimal parts, reducing repair time.
- Designed for easy flushing, enabling fast color changes and less material waste.
- Constructed with 300 series stainless steel for long-lasting durability.
- Includes fewer parts and an online replaceable bellows seal, leading to improved serviceability, lower cost of ownership, and reduced downtime.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955082472 |
| Division | IPD |
| Height | 28.8 IN | 73.152 CM |
| Length | 24 IN | 60.960 CM |
| Width | 42 IN | 106.680 CM |
| Volume | 16.8 FT3 | 0.476 M3 |
| Shipping Weight | 132 LBS | 59.874 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Gender | Male |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (mm) | 9.53 |
| Fluid Outlet Thread Gender | Male |
| Includes | Pump Only Air Controls, Fluid Filter, U-Cup |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (bar) | 159 |
| Maximum Working Pressure (kPa) | 15900 |
| Maximum Working Pressure (psi) | 2300 |
| Number of Pieces | 2 |
| Series | Bellows |
| Maximum Flow Rate (gpm @ 60 cpm) | 1.6 |
| Gun Model | No Applicator |
| Mount Type | Wall Mount |
| Product Type | Bare Package |
| Maximum Working Pressure (MPa) | 15.9 |
| Gun Technology | Bare Package |
| Model | Merkur |
