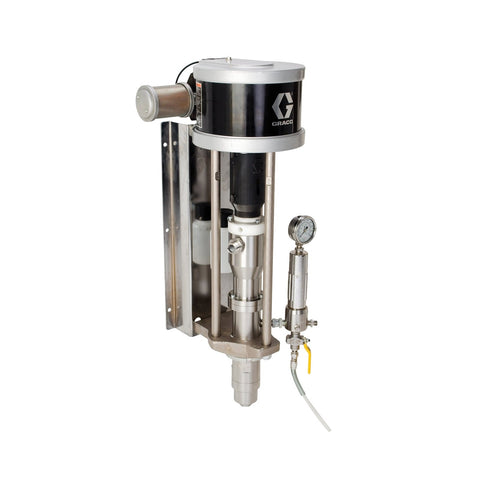

Graco | G05B02 Merkur Bellows 5:1 Ratio Pump Package with V-Packing Seal, Wall Mount, Fluid Filter, DataTrak
Graco
Model: G05B02
Graco Merkur bellows piston pumps offer low maintenance due to their design, which keeps seals away from the atmosphere. This design eliminates conventional throat seals, ensuring high reliability when handling moisture-sensitive materials.
- Features the highest technology air motor available.
- Operates with low air consumption, improving efficiency.
- Boasts a simple air motor design with minimal parts, reducing repair time.
- Designed for easy flushing, enabling fast color changes and less material waste.
- Constructed with 300 series stainless steel for long-lasting durability.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955078932 |
| Division | IPD |
| Height | 28.8 IN | 73.152 CM |
| Length | 24 IN | 60.960 CM |
| Width | 43.2 IN | 109.728 CM |
| Volume | 17.28 FT3 | 0.489 M3 |
| Shipping Weight | 117 LBS | 53.070 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (cm) | 2.5400 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4000 |
| Fluid Inlet Thread Gender | Male |
| Fluid Outlet Size (cm) | 1.905 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Gender | Male |
| Includes | Pump Only Air Controls, Fluid Filter, DataTrak, V-Packing |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (bar) | 34 |
| Maximum Working Pressure (kPa) | 3400 |
| Maximum Working Pressure (psi) | 500 |
| Number of Pieces | 3 |
| Series | Bellows |
| Maximum Flow Rate (gpm @ 60 cpm) | 2.4 |
| Gun Model | No Applicator |
| Mount Type | Wall Mount |
| Product Type | Bare Package |
| Maximum Working Pressure (MPa) | 3.4 |
| Gun Technology | Bare Package |
| Model | Merkur |
