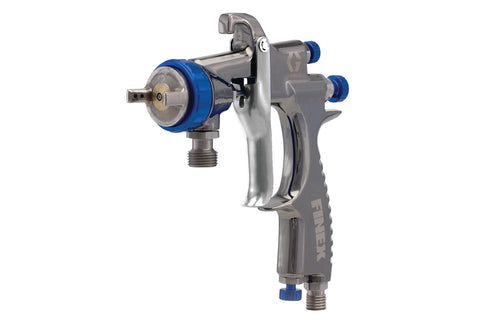

Graco | 289247 Finex Air Spray Pressure Feed Gun, HVLP, 0.039 in (1.0 mm) needle/ nozzle size
Graco
Model: 289247
The Finex gun is designed for balanced weight and light handling, providing a cost-effective spraying solution. It is available with either pressure feed or gravity feed options, and supports HVLP or conventional spray technologies.
- Aircaps are optimized for high-quality spray performance.
- The gun features a lightweight, ergonomic design.
- It offers the lightest trigger pull in its class.
- An integrated air inlet adjustment is included.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955263222 |
| Division | IPD |
| Height | 2.5 IN | 6.350 CM |
| Length | 5.1 IN | 12.954 CM |
| Width | 8.4 IN | 21.336 CM |
| Volume | .062 FT3 | 0.002 M3 |
| Shipping Weight | 1.37 LBS | 0.621 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Bleed Type | Non-Bleeder |
| Feed Type | Pressure Feed |
| Fluid Orifice Size (cm) | 0.10 |
| Fluid Orifice Size (mm) | 1 |
| Gun Weight (kg) | 0.37 |
| Gun Weight (lb) | 0.8 |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 43 |
| Maximum Fluid Temperature (°F) | 109 |
| Model | Finex |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Product Type | Spray Gun |
| Technology Type | HVLP |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Fluid Inlet Size (cm) | 0.9525 |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Size (mm) | 9.525 |
