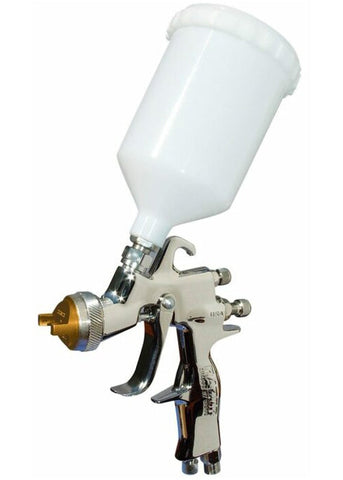

Graco | 288586 Sharpe Conventional Spray Gun, 1.8mm, 99.49GPM @ 43PSI, Gravity Feed
Graco
Model: 288586
The Razor Conventional gravity feed spray gun is a top-tier option for automotive refinishing.
- Available with a wide range of nozzle sizes.
- Suitable for high-pressure applications.
- Delivers broad spray patterns and significant material flow.
- Engineered for exceptionally fine atomization.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955045880 |
| Division | IPD |
| Height | 6 IN | 15.240 CM |
| Length | 11.25 IN | 28.575 CM |
| Width | 5.5 IN | 13.970 CM |
| Volume | .215 FT3 | 0.006 M3 |
| Shipping Weight | 2.2 LBS | 0.998 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (cm) | 1/4 |
| Air Inlet Size (in) | 1/4 |
| Feed Type | Gravity Feed |
| For Use With | Automotive Refinish |
| Gun Weight (kg) | 0.6 |
| Gun Weight (lb) | 1.3 |
| Includes | Air Cap, Nozzle, Needle Assembly, Needle Tip |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (GPM) | 99.49 GPM @ 43 PSI |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Temperature (°C) | 43 |
| Maximum Fluid Temperature (°F) | 109 |
| Model | Razor |
| Purge Method | Air |
| Series | Razor |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Maximum Air Pressure (MPa) | 0.7 |
| Nozzle Size (mm) | 1.8 |
