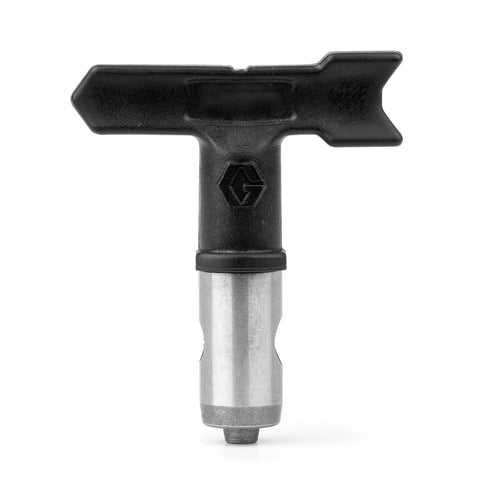

Graco | 286523 RAC 5 SwitchTip, 523
Graco
Model: 286523
The Reverse-A-Clean (RAC) 523 RAC 5 SwitchTip provides a 10 to 12 inch fan pattern with a 0.023 inch orifice. The tip can be reversed to clear clogs.
This tip is suitable for residential, commercial, or industrial applications. It performs best with materials such as lacquers, latex paints, and mastics.
- The most widely used reversible spray tip available, identifiable by its black handle.
- Designed for residential and commercial applications.
- Includes OneSeal technology compatible with most common coatings.
- Available in a large selection of tip sizes.
- Tip size is easily identified by laser stamping.
- A solvent seal is available for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955914353 |
| Division | CED |
| Height | .8 IN | 2.032 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.25 IN | 13.335 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .07 LBS | 0.032 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.023 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC 5 HandTite Tip Guard |
| Maximum Fan Width (in) | 10 |
| Maximum Fan Width (mm) | 305 |
| Maximum Fan Width (cm) | 30.5 |
| Maximum Flow Rate (L/min) | 2.16 |
| Minimum Fan Width (in) | 10 |
| Minimum Fan Width (mm) | 254 |
| Model | RAC 5 |
| Series | SwitchTip |
