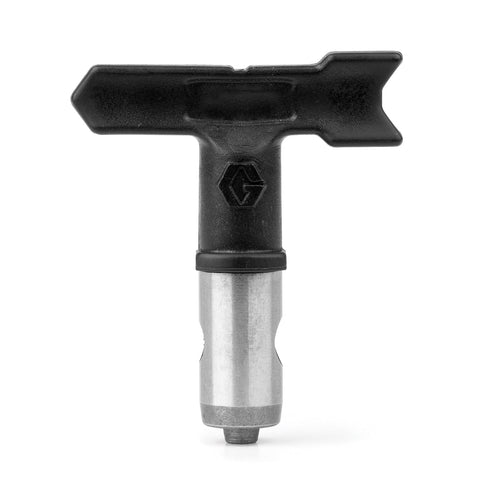

Graco | 286517 RAC 5 SwitchTip, 517
Graco
Model: 286517
The Reverse-A-Clean (RAC) 517 SwitchTip features a 10 to 12 inch fan pattern and a 0.017 inch orifice. It can be reversed to clear clogs.
This tip is suitable for residential, commercial, and industrial applications. It performs best with materials such as lacquers, latex paints, and mastics.
- The most widely used reversible spray tip available, identified by its black handle.
- Suitable for residential and commercial applications.
- Includes OneSeal for compatibility with most common coatings.
- A broad range of tip sizes is offered.
- Tip size is easily identifiable via laser stamping.
- A solvent seal is available for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955914315 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.75 IN | 6.985 CM |
| Width | 5.3 IN | 13.462 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .07 LBS | 0.032 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.017 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC 5 HandTite Tip Guard |
| Maximum Fan Width (in) | 10 |
| Maximum Fan Width (mm) | 305 |
| Maximum Fan Width (cm) | 30.5 |
| Maximum Flow Rate (L/min) | 1.17 |
| Minimum Fan Width (in) | 10 |
| Minimum Fan Width (mm) | 254 |
| Model | RAC 5 |
| Series | SwitchTip |
