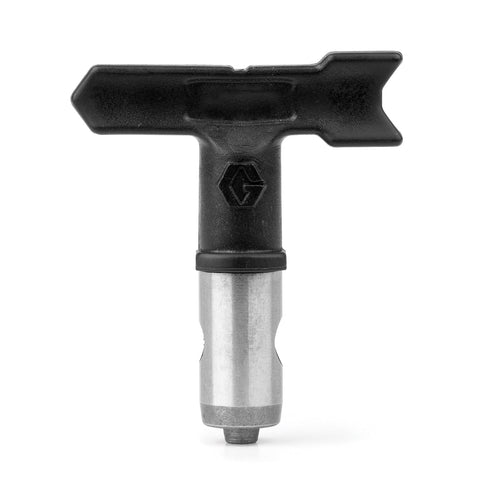

Graco | 286509 RAC 5 SwitchTip, 509
Graco
Model: 286509
The Reverse-A-Clean (RAC) 509 RAC 5 SwitchTip creates a 10 to 12 inch fan pattern with a 0.009 inch orifice. The tip can be reversed to clear clogs.
- The most commonly used reversible spray tip available, identified by its black handle.
- Suitable for both residential and commercial projects.
- Equipped with OneSeal for compatibility with most standard coatings.
- A broad range of tip sizes is offered.
- Tip size is clearly marked with a laser stamp for easy identification.
- A solvent seal option is available for use with very hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955914261 |
| Division | CED |
| Height | .75 IN | 1.905 CM |
| Length | 2.7 IN | 6.858 CM |
| Width | 5.25 IN | 13.335 CM |
| Volume | .006 FT3 | 0.000 M3 |
| Shipping Weight | .07 LBS | 0.032 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.009 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC 5 HandTite Tip Guard |
| Maximum Fan Width (in) | 10 |
| Maximum Fan Width (mm) | 305 |
| Tip Type | Airless |
| Pattern Size (in) | 10 to 12 |
| Maximum Fan Width (cm) | 30.5 |
| Maximum Flow Rate (L/min) | 0.34 |
| Minimum Fan Width (in) | 10 |
| Minimum Fan Width (mm) | 254 |
| Pattern Size (mm) | 254 to 304.8 |
| Model | RAC 5 |
| Series | SwitchTip |
