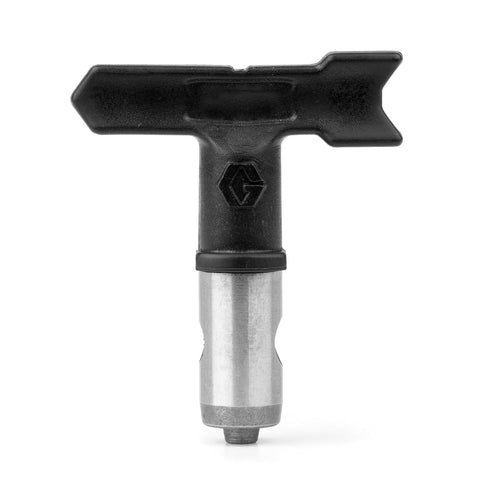

Graco | 286327 RAC 5 SwitchTip, 327
Graco
Model: 286327
The Reverse-A-Clean (RAC) 327 RAC 5 SwitchTip is engineered for application on narrow surfaces and with thicker materials. This 327 SwitchTip features a 0.027 inch orifice and generates a 6 to 8 inch fan spray. The tip can be reversed to efficiently clear blockages.
- The most widely used reversible spray tip available, identifiable by its black handle.
- Suitable for both residential and commercial use.
- Equipped with OneSeal for compatibility with most common coatings.
- A broad range of tip sizes is offered.
- Tip size is clearly marked with laser stamping for easy identification.
- A solvent seal option is available for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955914063 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.7 IN | 6.858 CM |
| Width | 5.25 IN | 13.335 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .07 LBS | 0.032 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.027 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC 5 HandTite Tip Guard |
| Maximum Fan Width (in) | 6 |
| Maximum Fan Width (mm) | 203 |
| Tip Type | Airless |
| Pattern Size (in) | 6 to 8 |
| Maximum Fan Width (cm) | 20.3 |
| Maximum Flow Rate (L/min) | 2.91 |
| Minimum Fan Width (in) | 6 |
| Minimum Fan Width (mm) | 152 |
| Pattern Size (mm) | 152.4 to 203.2 |
| Model | RAC 5 |
| Series | SwitchTip |
