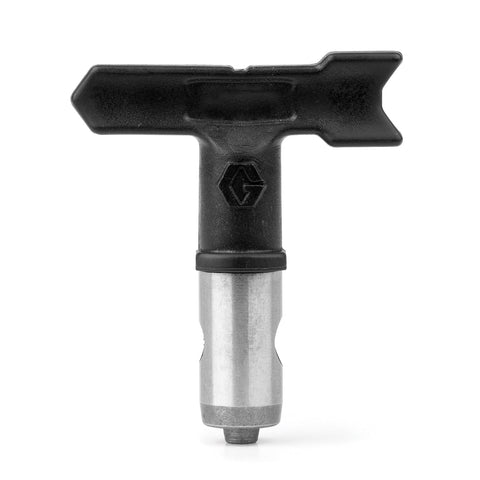

Graco | 286317 RAC 5 SwitchTip, 317
Graco
Model: 286317
The Reverse-A-Clean (RAC) 317 SwitchTip is engineered for spraying narrow surfaces. It features a 0.017 inch orifice and creates a 6 to 8 inch fan pattern. The tip can be reversed to clear clogs.
This tip is suitable for residential, commercial, or industrial applications. It performs best with materials such as lacquers, latex paints, and mastics.
- The most widely used reversible spray tip available, identified by its black handle.
- Suitable for residential and commercial applications.
- Includes OneSeal, compatible with most common coatings.
- A broad range of tip sizes is offered.
- Tip size is clearly marked with laser stamping for easy identification.
- A solvent seal is available for use with extremely hot solvents.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955914018 |
| Division | CED |
| Height | .85 IN | 2.159 CM |
| Length | 2.9 IN | 7.366 CM |
| Width | 7.4 IN | 18.796 CM |
| Volume | .011 FT3 | 0.000 M3 |
| Shipping Weight | .07 LBS | 0.032 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.017 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC 5 HandTite Tip Guard |
| Maximum Fan Width (in) | 6 |
| Maximum Fan Width (mm) | 203 |
| Maximum Fan Width (cm) | 20.3 |
| Maximum Flow Rate (L/min) | 1.17 |
| Minimum Fan Width (in) | 6 |
| Minimum Fan Width (mm) | 152 |
| Model | RAC 5 |
| Series | SwitchTip |
