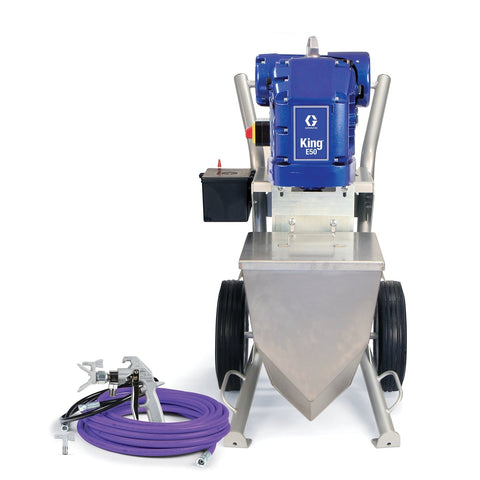

Graco | 273264 King E50 Hazardous Location Heavy Fluids Heavy Duty Cart Hopper No Filter Gun Hose Whip Tip
Graco
Model: 273264
The Graco King E-series Electric Airless Sprayer is designed for protective coatings. Select models are approved for hazardous locations. This sprayer utilizes a reliable and convenient electric power source, eliminating job site dependence on compressed air. Electric technology also reduces pulsation and prevents motor icing, ensuring smoother operation.
This is the superior electric solution for spraying protective coatings.
- Electric Power: When wired correctly, electric power provides safe, reliable, and convenient operation. It frees your operation from the dependency on air compressors and eliminates the need for essential maintenance on large-scale compressors.
- No Icing: The elimination of an air motor resolves the issue of icing, which is more common in humid conditions. Air motor icing leads to reduced motor speed and pressure loss, negatively impacting production rates.
- Reduced Noise: The quiet electric motor significantly improves working conditions by reducing noise exposure. The King E-series is up to 5 times quieter than air motor sprayers.
- Plug-in & Spray: The King E-series operates on multiple power options (120V or 240V). It supports Graco’s most popular airless spray tip sizes and delivers a consistent spray pattern due to its low pulsation rate, resulting in a noticeable smooth pattern at the gun.
- ATEX Approved: For safe operation in hazardous environments, the King E-series is approved for hazardous locations. With ATEX, IECEx, and Class 1, Div. 1 approvals, this sprayer can be used in chemical plants, paint shops, refineries, off-shore locations, or any area where spark generation is a concern.
- Energy Savings: The King E-series offers improved efficiency and a lower overall cost of ownership, making it the most cost-effective solution compared to pneumatic airless sprayers. It can save up to 80% in energy costs compared to an air-operated sprayer.
- Three-Year Limited Warranty: Graco provides a strong warranty on its equipment. The King E-series includes a three-year warranty on the gear train, chassis, and electric motor. Electronics and all other King E-series driver parts are covered by a standard one-year warranty.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946182019 |
| Division | CED |
| Height | 63 IN | 160.020 CM |
| Length | 39 IN | 99.060 CM |
| Width | 30.5 IN | 77.470 CM |
| Volume | 43.326 FT3 | 1.227 M3 |
| Shipping Weight | 381 LBS | 172.819 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (mm) | 12.7;9.525 |
| Frame Configuration | Heavy-Duty Cart |
| Hose Inlet Diameter (cm) | 1.27 |
| Hose Inlet Diameter (in) | 1/2 |
| Hose Inlet Diameter (mm) | 12.7 |
| Includes | Gun, Hose, Whip, Tip |
| Maximum Flow Rate (L/min) | 2.3 |
| Maximum Hose Length (ft) | 210 |
| Maximum Hose Length (m) | 64 |
| Maximum Sound Pressure Level (dB(A)) | 77 |
| Maximum Tip Size (in) | 0.023 |
| Maximum Working Pressure (psi) | 5000 |
| Maximum Working Pressure (kPa) | 34500 |
| Maximum Working Pressure (MPa) | 35 |
| Pressure Control Type | Electric Control Knob |
| Model | King |
| Maximum Working Pressure (bar) | 345 |
| Weight (kg) | 134 |
| Series | E50 |
| Outlet Paint Filter | 60 Mesh |
| Minimum Generator Power (kW) | 5 |
| Frequency (Hz) | 50/60 |
| Pump Rod Type | Chromex |
| Minimum Generator Power (W) | 5000 |
| Number of Guns | 1-2 |
| Hopper Capacity (gal) | 10 |
| Amperage (A) | 120V/25A, 240V/15A |
| Gun Model | XTR+ |
| Product Type | Single Leg |
| Material Application | Protective Coatings |
| Lower Configuration | No Filter |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 120 |
| Fluid Outlet Thread Gender | Male |
| Fluid Inlet Thread Gender | Male |
| Lower Type | 145cc Xtreme Duty Lower |
| Minimum Hose Length (ft) | 50 |
| Minimum Hose Inside Diameter (in) | 0.375 |
| Minimum Operating Temperature (°C) | -5 |
| Minimum Operating Temperature (°F) | 23 |
| Hopper Capacity (L) | 30 |
| Maximum Continuous Cycle Rate (CPM) | 44 |
| Approved for Hazardous Locations | Yes |
