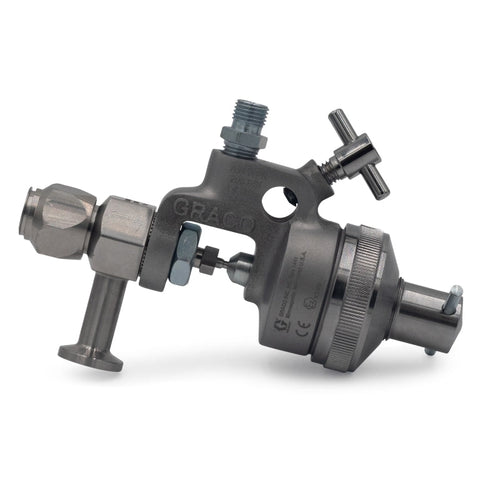

Graco | 26C799 SaniForce In-Line Spray Applicator
Graco
Model: 26C799
The SaniForce spray applicator utilizes Graco's established high-performance airless spray technology for hygienic spray coating applications. This automatic spray technology ensures consistent results in demanding environments and provides precise, reliable coatings. The applicator is compatible with various tip selections to accommodate different materials, viscosities, and spray patterns.
This sanitary applicator from Graco is designed for precise and hygienic coating. It is constructed with FDA-compliant materials, making it suitable for food, personal care, and pharmaceutical applications. The adjustable spray pattern allows for easy tip orientation, facilitating efficient vertical or horizontal spraying.
- Handles pressures up to 600 psi
- Constructed with FDA-compliant materials
- Features a 1/2 in tri-clamp fluid inlet
- Tips are sold separately
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946280418 |
| Division | PRO |
| Height | 4 IN | 10.160 CM |
| Length | 10.5 IN | 26.670 CM |
| Width | 4 IN | 10.160 CM |
| Volume | .097 FT3 | 0.003 M3 |
| Shipping Weight | 2.08 LBS | 0.943 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (cm) | 0.64 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 64 |
| Air Inlet Thread Gender | Male |
| Feed Type | Pressure Feed |
| Includes | Gun only - spray tip sold separately |
| Maximum Air Pressure (bar) | 14 |
| Maximum Air Pressure (psi) | 200 |
| Maximum Fluid Pressure (bar) | 41 |
| Maximum Fluid Pressure (psi) | 600 |
| Maximum Fluid Temperature (°C) | 49 |
| Maximum Fluid Temperature (°F) | 120 |
| Minimum Air Inlet Pressure (bar) | 3.4 |
| Minimum Air Inlet Pressure (kPa) | 345 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Model | SaniForce |
| Overall Height (cm) | 18.4 |
| Overall Height (in) | 7.24 |
| Overall Height (mm) | 184 |
| Pattern Size (in) | Varied |
| Pattern Size (mm) | Varied |
| Sound Pressure Level (dB(A)) | 79.5 |
| Maximum Fluid Pressure (MPa) | 4.1 |
| Maximum Air Pressure (MPa) | 1.4 |
| Maximum Air Inlet Pressure (MPa) | 4.1 |
| Fluid Inlet Size (cm) | 1.27 |
| Fluid Inlet Size (in) | 0.5 |
| Fluid Inlet Size (mm) | 12.7 |
