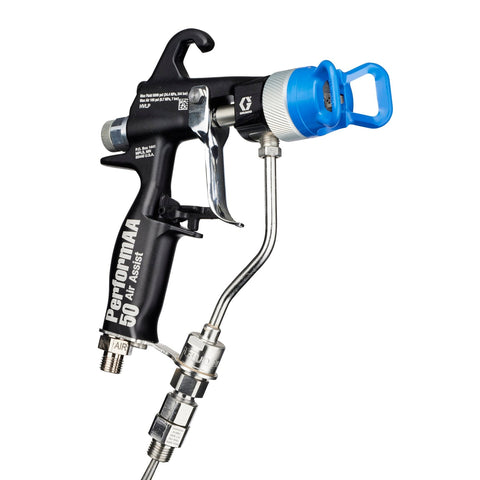

Graco | 26B515 PerformAA 5000 Air Assist Gun with Quick Drying air cap and fluid swivel
Graco
Model: 26B515
This spray gun is designed for superior performance with material-specific air caps and fine finish spray tips. Its lightweight construction and optimized balance, trigger pull, and ergonomics ensure operator comfort.
- High-quality 5000 psi air assist spray gun.
- Features a quick-drying air cap to minimize air entrapment.
- Includes a low-profile fluid swivel.
- Comes with a fine finish (AXM) or pre-orifice (AXF) spray tip, as selected.
- Equipped with a clicking fan pattern adjustment knob for precise control.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946195712 |
| Division | IPD |
| Height | 2.15 IN | 5.461 CM |
| Length | 10.9 IN | 27.686 CM |
| Width | 13 IN | 33.020 CM |
| Volume | .176 FT3 | 0.005 M3 |
| Shipping Weight | 2.62 LBS | 1.188 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Bleed Type | Non-Bleeder |
| Feed Type | Pressure Feed |
| Gun Weight (g) | 453 |
| Gun Weight (kg) | 0.45 |
| Gun Weight (lb) | 1 |
| Gun Weight (oz) | 16 |
| Includes | Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (bar) | 345 |
| Maximum Fluid Pressure (kPa) | 34500 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°C) | 43 |
| Maximum Fluid Temperature (°F) | 110 |
| Model | PerformAA 50 |
| Overall Height (cm) | 20.8 |
| Overall Height (in) | 8.2 |
| Overall Height (mm) | 208 |
| Overall Length (cm) | 17.25 |
| Overall Length (in) | 6.8 |
| Overall Length (mm) | 173 |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Product Type | Spray Gun |
| Technology Type | N/A |
| Fluid Adjustment Knob | Clicking |
| Sound Pressure Level (dB(A)) | 62.6 |
| Maximum Fluid Pressure (MPa) | 34.5 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Fluid Inlet Size (cm) | 0.635 |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Size (mm) | 6.35 |
| Fluid Inlet Thread Gender | Male |
| Gun Weight with Tip and Guard (g) | 490 |
| Gun Weight with Tip and Guard (oz) | 17.4 |
| Gun Weight without Tip and Guard (g) | 460 |
| Gun Weight without Tip and Guard (oz) | 16.2 |
