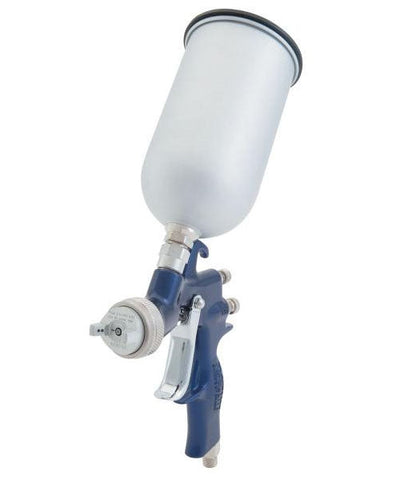

Graco | 253437 SHARPE RAZOR HVLP Spray Gun for Primer, High Viscosity, 1.5mm, 14 in Pattern, 14.4 CFM @ 29PSI, Gravity Feed
Graco
Model: 253437
The RAZOR HVLP spray gun is designed for applying primer coatings. It features a stainless steel needle and nozzle for durability. The Razor spray gun provides long-term affordability through its extended-life needle packing and cost-effective repair parts, contributing to a low cost of ownership. It comes with a 23oz brushed aluminum cup.
This gun is ideal for applying primer and high viscosity materials.
- Achieves high-quality atomization.
- Reduces overspray, minimizing the need for masking and sanding.
- Features an ergonomic, lightweight gun handle and a low trigger pull for enhanced painter comfort.
- Offers a large spray pattern size, up to 14 inches.
- Constructed with a blue-anodized finish and 100% stainless steel fluid passages.
- Includes the RAZOR gun, a 23-ounce polished aluminum cup, and a stainless steel fluid needle and nozzle.
- Manufactured in the USA.
- Comes with a 3-year warranty.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652001058 |
| Division | IPD |
| Height | 5.85 IN | 14.859 CM |
| Length | 5.25 IN | 13.335 CM |
| Width | 8.4 IN | 21.336 CM |
| Volume | .149 FT3 | 0.004 M3 |
| Shipping Weight | 2.08 LBS | 0.943 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (cm) | 1/4 |
| Air Inlet Size (in) | 1/4 |
| Feed Type | Gravity Feed |
| Fluid Orifice Size (cm) | 0 |
| Fluid Orifice Size (mm) | 1 |
| For Use With | Automotive Refinish |
| Gun Weight (kg) | 0.6 |
| Gun Weight (lb) | 1.3 |
| Includes | Air Cap, Nozzle, Needle Assembly, Needle Tip, Air Cap with Retaining Ring |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 20 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (GPM) | 107.72 GPM @ 29 PSI |
| Maximum Fluid Temperature (°C) | 43 |
| Maximum Fluid Temperature (°F) | 109 |
| Model | Razor |
| Pattern Size (in) | 14 |
| Purge Method | Air |
| Series | Razor |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Maximum Air Pressure (MPa) | 0.7 |
| Nozzle Size (mm) | 1.5 |
