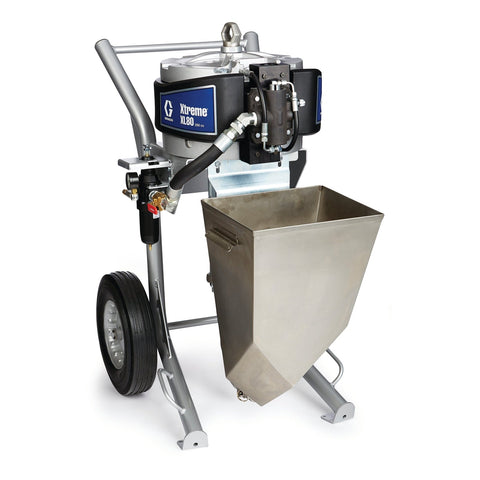

Graco | 24X594 King 80:1 Heavy-Fluid Sprayer, XL10K, XHF Gun, 429 XHD Tip, 3/4 in x 50 ft (15m) Hose, 1/2 in x 25 ft (7.6 m) Whip
Graco
Model: 24X594
The Graco King pneumatic airless sprayers are powerful machines designed for protective coatings, offering high volume and high pressure. They provide unprecedented applicator output, pressure ratios, and pumping capacities. These units are built to withstand harsh environments and handle demanding protective coating and corrosion control applications. With 10 available ratios, there is a sprayer suited for your specific application's pressure and flow requirements.
These are superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing, and protective coatings.
-
Simple Maintenance
- This air motor features 50% fewer parts than the NXT valve, simplifying maintenance and troubleshooting.
- All motor parts are easily accessible for straightforward maintenance.
-
Improved Icing Performance
- Newly designed poppets and external pilot lines minimize pilot valve freezing, preventing immediate stops.
- Icing potential has been reduced by up to 70%.
-
Less Pulsation
- With over 145% higher exhaust capacity in the air valve, you will experience faster, smoother changeovers.
- This eliminates pattern "winks" for a noticeable improvement.
-
New MaxLife Pump Lowers
- Featuring improved sealing and strength with enhanced edge loading and seven throat packings instead of five, the new MaxLife pump Lowers are built for demanding jobs, offering exceptional durability and longevity.
-
New Air Motor
- Graco’s powerful new air motor supports multi-gun capabilities, allowing you to use multiple guns with minimal pulsation. A new manifold is designed for simplified multi-gun installation.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652264064 |
| Division | CED |
| Height | 50.4 IN | 128.016 CM |
| Length | 38.4 IN | 97.536 CM |
| Width | 30 IN | 76.200 CM |
| Volume | 33.6 FT3 | 0.951 M3 |
| Shipping Weight | 364 LBS | 165.108 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Size (mm) | 31.75 |
| Fluid Outlet Size (mm) | 25.4 |
| Frame Configuration | Heavy-Duty Cart |
| Hose Inlet Diameter (cm) | 1.905 |
| Hose Inlet Diameter (in) | 3/4 |
| Hose Inlet Diameter (mm) | 19.05 |
| Includes | XL10000 High Performance Motor, Heavy Duty Cart, XHF Spray Gun, Hose |
| Maximum Sound Pressure Level (dB(A)) | 83 |
| Maximum Tip Size (in) | Variable |
| Maximum Working Pressure (psi) | 7250 |
| Maximum Working Pressure (kPa) | 50000 |
| Maximum Working Pressure (MPa) | 50 |
| Pressure Control Type | Air Regulator |
| Model | King |
| Maximum Working Pressure (bar) | 500 |
| Weight (kg) | 154 |
| Series | XL80 |
| Hose Diameter (in) | 1/2, 3/4 |
| Outlet Paint Filter | 60 Mesh |
| Pump Rod Type | Chromex |
| Number of Guns | 1 |
| Gun Model | XHF |
| Product Type | Single Leg |
| Material Application | Paints, Primers |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (kPa) | 600 |
| Maximum Air Pressure (psi) | 88 |
| Fluid Inlet Thread Gender | Male |
| Stroke Length (in) | 4.75 |
| Maximum Flow Rate (lpm @ 60 CPM) | 0.1 |
| Lower Type | Non-Filter |
| Package Pressure Ratio (Motor/Lower) | 80:1 XL10000 / 250cc |
| Approved for Hazardous Locations | Yes |
