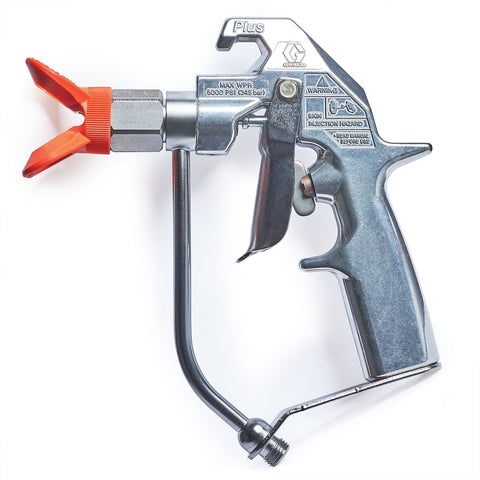

Graco | 235462 Silver Plus Airless Spray Gun, 2 Finger Trigger, Fine Finish Flat Tip
Graco
Model: 235462
The Silver Plus Gun is designed for durability, extended service life, efficient spraying, and comfortable handling. Rated at 5000 psi (345 bar, 34.5 MPa), it is the preferred choice for high-pressure applications. This gun includes a 2-finger trigger and a Fine Finish Flat Tip Guard.
-
Rugged Design
- Constructed with durable forged aluminum to withstand demanding work environments.
- Features a lighter weight compared to competing guns.
- The polished body ensures easy cleaning.
-
Exclusive Needle Design
- Factory-set needle requires no trigger adjustments.
- Guaranteed for life against breakage.
- Delivers maximum performance and a long service life.
-
Stainless Steel Fluid Tube
- Fluid is directed to the tip through the gun's fluid tube.
- Enables spraying of heavier materials, including high-solid coatings and mastics.
-
Optional Light Viscosity Needle Kit
- Provides a faster shut-off to minimize spitting when spraying light viscosity materials.
- This kit is included with the Silver Plus Gun (Part No. 235462) or available separately as Needle Kit (Part No. 235475).
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955384705 |
| Division | CED |
| Height | 2.3 IN | 5.842 CM |
| Length | 8.25 IN | 20.955 CM |
| Width | 12.45 IN | 31.623 CM |
| Volume | .137 FT3 | 0.004 M3 |
| Shipping Weight | 1.85 LBS | 0.839 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Component A Inlet Size (cm) | 0.635 |
| Component A Inlet Size (in) | 1/4 |
| Component A Inlet Size (mm) | 6.35 |
| Component A Inlet Thread Type | NPSM |
| Component Type | Single Component |
| Fluid Orifice Size (cm) | 0.094 |
| Fluid Orifice Size (mm) | 0.94 |
| For Use With | High Pressure Application |
| Includes | Fine Finish Flat Tip Guard |
| Maximum Fluid Pressure (bar) | 345 |
| Maximum Fluid Pressure (kPa) | 34500 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Silver Plus |
| Purge Method | Liquid |
| Trigger Lock | Locking |
| Trigger Type | Mechanical |
| Sound Pressure Level (dB(A)) | 78 |
| Maximum Fluid Pressure (MPa) | 34.5 |
| Gun Model | Silver Plus Gun |
