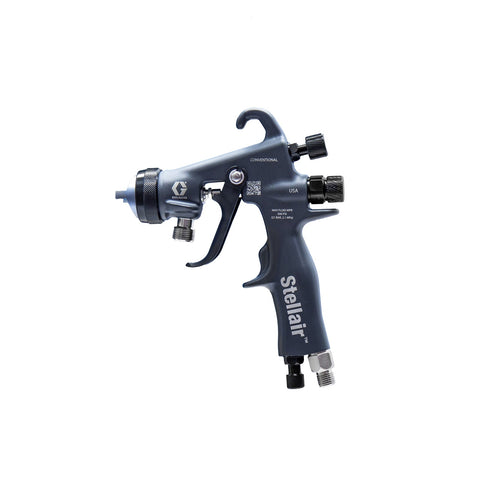

Graco | 2004150 Stellair Air Spray Gun, Conventional, 0.110 in (2.8 mm), General Industry, PEEK Tip
Graco
Model: 2004150
This pressure feed air spray gun offers the ergonomic design, performance, and serviceability required by industrial painters for high-quality finishes.
Suitable for custom shops and high-volume manufacturing, Stellair provides industry-leading finish quality for applications including automotive, metal, plastic, and wood.
- Conventional air spray is a traditional method that achieves Class A, automotive finish quality.
- The general industry air cap produces a consistent, high-quality spray pattern at low atomizing pressure, minimizing air cap buildup.
- The Polyetheretherketone (PEEK) needle tip is durable for active use, extending service intervals.
- The ergonomically designed spray gun body, handle, and finger rests ensure a comfortable fit for all painters.
- A one-piece fluid cartridge allows for rapid removal and replacement, significantly reducing maintenance downtime.
- The direct stainless steel fluid path requires minimal solvent for flushing, thereby lowering volatile organic compound (VOC) emissions.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946834741 |
| Division | IPD |
| Height | 2 IN | 5.080 CM |
| Length | 12 IN | 30.480 CM |
| Width | 7.25 IN | 18.415 CM |
| Volume | .101 FT3 | 0.003 M3 |
| Shipping Weight | 1.47 LBS | 0.667 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Feed Type | Pressure Feed |
| Fluid Orifice Size (mm) | 0.028 |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (bar) | 21 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Series | Manual |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Product Type | Spray Gun |
| Technology Type | Conventional |
| Needle Tip Material | PEEK |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Air Pressure (MPa) | 0.7 |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Size (mm) | 9.52 |
