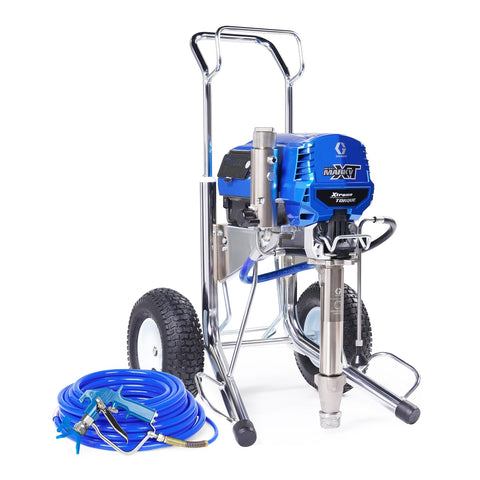

Graco | 19F550 Mark V XT HD 3-in-1 Standard Series Electric Airless Sprayer, Hi-Boy

Graco

Model: 19F550

The Mark V XT Standard Series offers an advanced airless spraying experience. It is equipped with a 2.9 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and the longest-lasting pump in its class, designed to enhance your spraying process.

The XT Standard Series electric sprayers provide exceptional reliability for contractors seeking proven performance on a quiet spraying platform. Consider upgrading to an XT ProContractor for additional profit-enhancing features, or enhance your current unit later with the new Modular Accessory Kits.

• Xtreme Torque Motor Technology
  • Offers 15 times more torque than traditional motors.
  • Features 8 times more magnets for superior power and performance.
  • Operates at 90% lower speeds to extend motor lifespan.
  • Achieves up to 10 times quieter operation.
• Rapid-Response Pressure Control

  • Provides instant response for an optimal finish quality.
  • Delivers enhanced performance across its entire tip size range.
  • Features the industry's largest operating pressure range, from 50 to 3,300 psi.
• Selectable Performance Modes
  • Two distinct spray modes offer unique performance levels to increase efficiency on any job.
  • Achieve cost savings and superior control with Low Pressure Mode (50 - 2,000 psi).
  • Utilize High Pressure Mode for maximum performance (500 – 3,300 psi).
• Easy-to-Read LED Digital Display
  • Clearly visible in challenging spraying conditions.
• Endurance Vortex Piston Pump with ProConnect
  • The Endurance Vortex Rod is designed to last 3 times longer than the closest competitor.
  • ProConnect Pump Removal allows for rapid on-site servicing.
  • Features a 25% longer pump stroke for extended life before repacking.
• TurboClean Cleaning System
  • The industry's fastest pump cleaning system.
  • Cleans 3 times faster using half the water.
  • Conveniently located for ease of use.
• WatchDog Pump Protection
  • Prevents pump damage by automatically shutting off when the refill level is low.
• Durable Filtration
  • The Easy Out Filter simplifies maintenance and reduces clogging.
• Upgrades with Modular Accessories
  • QuickReel hose management system.
  • SmartDisplay XT compatible with BlueLink.
  • Endurance Vortex MAXLIFE EXTREME Pump.
  • CrushProof Inlet Strainer.
  • Rugged FlatProof tires.
• Heavy-Duty Blue Texture Gun & RAC X LTX SwitchTip

Operational Specifications

Technical Specifications
