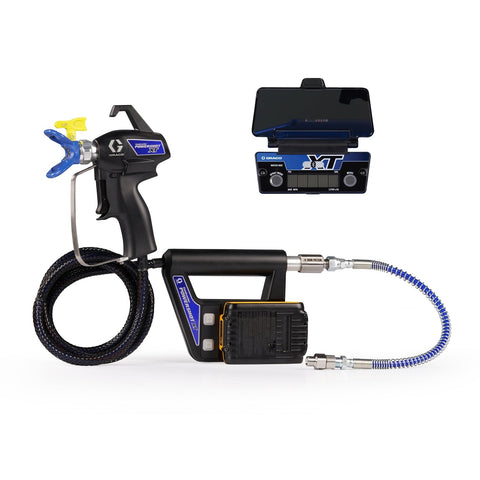

Graco | 18H313 Contractor PowerShot XT With Display
Graco
Model: 18H313
The Contractor PowerShot XT electronic airless gun offers an advanced airless spraying experience. It significantly reduces tip spits and features the industry's lightest trigger pull, ensuring comfortable, all-day use on a single charge. This gun is designed for exclusive connection with Graco XT Airless Sprayers.
This sprayer is compatible with all Ultra XT/Mark XT Sprayers that do not already include the optional Smart Display XT.
-
Electric Powered Gun Virtually Eliminates Spits
- The Instant Response Trigger activates 80 times faster than traditional guns.
-
Industry's Lightest Trigger Pull Force
- Provides all-day comfort with 80% less force required per trigger pull.
-
Remotely Adjust Pressure At The Gun
- Adjust pressure quickly from any location up to 200 feet away.
-
Flexible Gun Whip Hose
- A 6 ft x 1/8 in flexible hose provides full mobility and simplifies hose management during spraying.
- Delivers superior spray control and reduces user fatigue.
-
Comfortable In-line Handle & EasyOut Gun Filter
- Offers contractors a comfortable grip.
- Prevents dirt and debris from entering the spray pattern, ensuring a better finish.
-
Fastest Service On The Jobsite
- Rebuild your gun in seconds using the PowerShot ProConnect Cartridge.
-
Attach PowerPak for Hands-Free Portability
- Compatible with any belt, offering unlimited operating configurations.
-
Powered by DeWalt
- Enables all-day spraying on a single battery charge.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946839609 |
| Division | CED |
| Height | 5 IN | 12.700 CM |
| Length | 16.25 IN | 41.275 CM |
| Width | 11.25 IN | 28.575 CM |
| Volume | .529 FT3 | 0.015 M3 |
| Shipping Weight | 8.4 LBS | 3.810 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Gun Weight (kg) | 0.5 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | PowerShot |
| Series | XT |
| Trigger Type | Electric Powered |
| Sound Pressure Level (dB(A)) | 78 |
| Gun Model | Contractor PowerShot XT |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (MPa) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Maximum Operating Temperature (°C) | 32 |
| Maximum Operating Temperature (°F) | 90 |
