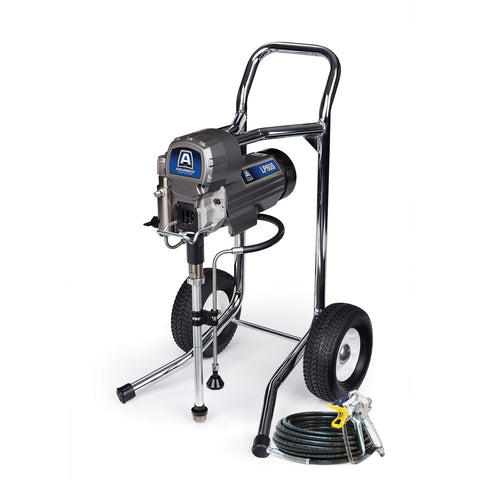

Graco | 17M138 AIRLESSCO SPRAYER,LP655,HIBOY
Graco
Model: 17M138
The MP & LP Series sprayers are designed with tough, compact, and well-balanced frames that protect the pump and facilitate easy transport. The Pro-Duty Quick Repair Pump features externally adjustable packing to ensure continuous operation. Its fan-cooled DC motor provides reliable daily performance, supported by a 2-Year Advantage Protection warranty, including a one-time piston and packing allowance, and lifetime coverage for the pump cylinder, gearbox, and electric motor.
This sprayer is suitable for medium to large residential projects and small commercial buildings. It can be used with water and oil-based coatings, 100% acrylics, stains, sealers, varnishes, and lacquers.
- The precision spray control system offers smooth spraying across various pressure settings.
- Features an LCD digital display.
- Equipped with an industrial-quality, high-torque TEFC DC motor.
- The Pro-Duty pump includes a chrome piston rod and a lifetime cylinder body.
- The pump cylinder has a lifetime warranty.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 00755652387879 |
| Division | CED |
| Height | 36 IN | 91.440 CM |
| Length | 24 IN | 60.960 CM |
| Width | 24 IN | 60.960 CM |
| Volume | 12 FT3 | 0.340 M3 |
| Shipping Weight | 84 LBS | 38.102 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Convertible | Non-Convertible |
| Engine Size (HP) | 1 |
| Fluid Outlet Size (mm) | 6.35 |
| Frame Configuration | Hi-Boy |
| Includes | 1/4 in x 50 ft (15.2 m) Hose, 4-Finger Trigger ProLight 500 Gun, Conversion Kit to 2-Finger Trigger, 517 Rev-Tip |
| Maximum Flow Rate (L/min) | 2.3 |
| Maximum Hose Length (ft) | 300 |
| Maximum Hose Length (m) | 92 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.025 |
| Maximum Tip Size Gun 1 (in) | 0.025 |
| Maximum Working Pressure (psi) | 3300 |
| Maximum Working Pressure (kPa) | 22737 |
| Maximum Working Pressure (MPa) | 22.7 |
| Overall Width (mm) | 533 |
| Model | Airlessco |
| Maximum Working Pressure (bar) | 227 |
| Overall Height (cm) | 92.7 |
| Overall Height (in) | 36.5 |
| Weight (kg) | 30 |
| Overall Height (mm) | 927 |
| Overall Length (cm) | 58.4 |
| Overall Width (in) | 21 |
| Overall Length (in) | 23 |
| Series | LP655 |
| Overall Length (mm) | 584 |
| Overall Width (cm) | 53.3 |
| Pump Rod Type | Hard Chrome |
| Minimum Generator Power (W) | 3000 |
| Number of Guns | 1 |
| Volume Per Cycle (cycles/gal) | 581 |
| Recommended Annual Usage | Up to 3,200 gallons per year |
