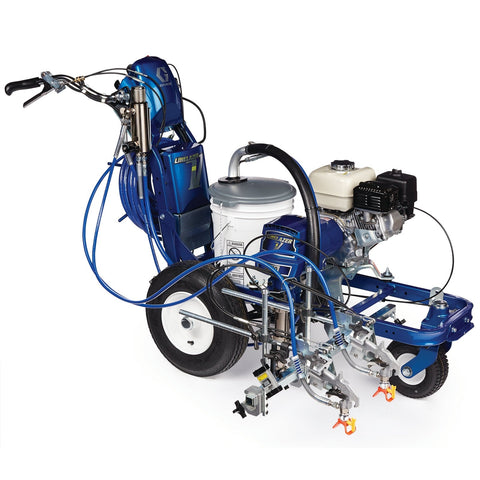

Graco | 17K581 LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns
Graco
Model: 17K581
For 1 or 2-gun airless line striping that requires additional power, the LineLazer V 5900 HP Automatic Series striper is a suitable option. These durable machines provide enhanced performance and consistent lines for standard striping tasks.
The HP Automatic Series includes advanced features for automatic line production, such as skip-lines, and offers real-time job performance data to verify completion.
-
Automatic Paint Gun System
- Automatically stripes skip-lines.
- Reduces operator fatigue through push-button line production.
- Features a quality solenoid-driven system.
-
Auto-Layout II
- Simplifies parking lot layout.
- SmartControl measures while walking and places pre-marks.
- Eliminates the need for measuring tape, string lines, or aerosol cans.
- Reduces layout time by half.
-
LiveLook Display with SmartControl
- Provides striping information at a glance.
- Tracks, measures, and controls all job aspects.
- Offers accessible proof-of-job data via the J-Log System with USB Download.
- Maintains consistent spraying pressure for uniform lines.
-
J-Log System with USB Download
- Provides valuable job information.
- Proof of job capability enables more striping opportunities.
- USB download functionality allows for capturing and saving all job data.
-
Honda GX Engine
- Delivers reliable, easy-starting power.
- Contractor-preferred for its power and proven reliability.
- Oil Alert system shuts down the engine to prevent damage if oil levels are low.
-
EasyMark Gun Adjustment System
- Facilitates simple gun adjustments.
- Ensures perfect gun alignment with an easy-to-use guide mark system.
- Supports 2-gun operation with the QuikSelect gun selector.
-
EZ Align Wheel System
- Ensures accurate striper tracking.
- Features simple front wheel alignment that requires no special tools.
-
DualComfort Handlebar System
- Allows for easy handlebar adjustment.
-
Endurance Chromex Pump
- Provides reliable, long-lasting pump performance.
- Offers industry-leading pump performance with a field-proven design.
- Handles demanding materials due to its long-life rod treatment.
- Is 4X harder than standard chrome.
-
Additional Features
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652350415 |
| Division | CED |
| Height | 51 IN | 129.540 CM |
| Length | 39 IN | 99.060 CM |
| Width | 74 IN | 187.960 CM |
| Volume | 85.177 FT3 | 2.412 M3 |
| Shipping Weight | 386 LBS | 175.087 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX160 |
| Fuel Tank Capacity (gal) | 0.95 |
| Fuel Tank Capacity (L) | 3.6 |
| Includes | Tips, Guard, Gun, Hose, Pump Filter, TSL |
| Maximum Flow Rate (L/min) | 6 |
| Maximum Sound Pressure Level (dB(A)) | 87.1 |
| Maximum Tip Size (cm) | 0.0737 |
| Maximum Tip Size (in) | 0.029 |
| Maximum Tip Size (mm) | 0.7366 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 2 |
| Number of Pumps | 1 |
| Overall Height (cm) | 113.03 |
| Overall Height (in) | 44.5 |
| Overall Height (mm) | 1130.3 |
| Overall Length (cm) | 174.63 |
| Overall Length (in) | 68.75 |
| Overall Length (mm) | 1746.25 |
| Overall Width (cm) | 87 |
| Overall Width (in) | 34.25 |
| Overall Width (mm) | 870 |
| Power Rating (HP) | 5.5 |
| Power Rating (kW) | 4.1 |
| Series | 5900 |
| Weight (kg) | 121 |
| Product Series | HP Automatic |
