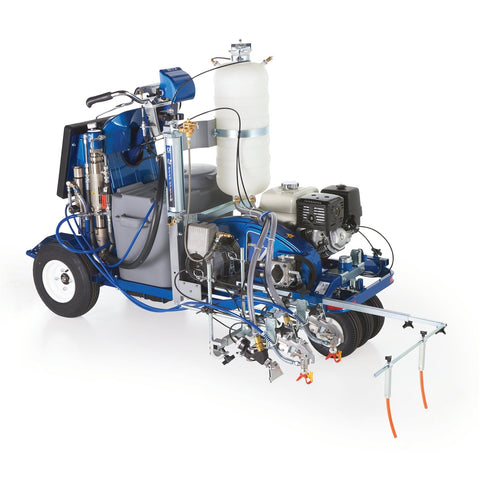

Graco | 17J951 LineLazer V 250SPS HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 1 Tank
Graco
Model: 17J951
The LineLazer V 250SPS HP Reflective Series is a self-propelled system designed for large, heavy-duty line striping tasks such as parking lots and road jobs. It features automatic paint guns and hydraulic power, with the capability to apply reflective beads.
The HP Reflective Series enhances the HP Automatic Series by adding superior bead application. The HP Automatic Series includes automatic line production, skip-line capability, and real-time job performance data for proof-of-job requirements.
-
Pressurized EZ Bead System
- Provides superior bead application performance.
- Ensures correct bead flow and paint penetration.
- Features dual bead tanks, each holding up to 120 lbs.
-
Automatic Paint Gun System
- Enables automatic striping of skip-lines.
- Allows for push-button line production, reducing operator fatigue.
- Utilizes a quality solenoid-driven system.
-
Remote Mount Control Box
- Displays striping information for easy viewing.
- Designed for simple operation and visibility in all conditions.
-
25-Gallon Paint Hopper
- Reduces the frequency of refills.
- Offers extended striping time due to its large capacity.
-
Honda GX Engine
- Delivers reliable, easy-to-start power.
- A contractor-preferred engine known for excellent power and proven reliability.
- Equipped with Oil Alert to prevent engine damage if oil levels drop too low.
-
Electric Start
- Facilitates fast starting.
-
EasyMark Gun Adjustment System
- Simplifies gun adjustments.
- Ensures perfect gun alignment with an easy-to-use guide mark system.
- Supports 2-gun capability with the QuikSelect gun selector.
-
Front or Rear Gun Mount
- Contributes to straighter long lines.
- Allows for the use of up to six guns.
-
Self-Centering Front Wheel
- Offers simple operation.
- Features a foam-filled, three-wheel design for stability.
-
Additional Features
- Easy handlebar adjustment.
- Endurance Chromex Pump.
- High-efficiency hydraulic motor.
- High-capacity cooling system.
- Easy Out pump filter.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652340188 |
| Division | CED |
| Height | 63.75 IN | 161.925 CM |
| Length | 78.5 IN | 199.390 CM |
| Width | 44.75 IN | 113.665 CM |
| Volume | 129.444 FT3 | 3.665 M3 |
| Shipping Weight | 955 LBS | 433.181 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX390 |
| Fuel Tank Capacity (gal) | 1.4 |
| Fuel Tank Capacity (L) | 5.3 |
| Hopper Volume Capacity (gal) | 25 |
| Hopper Volume Capacity (L) | 95 |
| Includes | Pressurized Bead System (1 Bead Tank), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL) |
| Maximum Flow Rate (L/min) | 9.5 |
| Maximum Operating Speed (km/h) | 16.1 |
| Maximum Operating Speed (mph) | 10 |
| Maximum Sound Pressure Level (dB(A)) | 89.1 |
| Maximum Speed (RPM) | 3600 |
| Maximum Tip Size (cm) | 0.0991 |
| Maximum Tip Size (in) | 0.039 |
| Maximum Tip Size (mm) | 0.9906 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 2 |
| Number of Hoppers | 1 |
| Number of Pumps | 1 |
| Overall Height (cm) | 128.3 |
| Overall Height (in) | 50.5 |
| Overall Height (mm) | 1282.7 |
| Overall Length (cm) | 186.7 |
| Overall Length (in) | 73.5 |
| Overall Length (mm) | 1866.9 |
| Overall Width (cm) | 83.8 |
| Overall Width (in) | 33 |
| Overall Width (mm) | 838 |
| Power Rating (HP) | 13 |
| Power Rating (kW) | 9.69 |
| Series | 250SPS |
| Weight (kg) | 352 |
| Bead Tank Size (lb) | 120 |
| Product Series | HP Reflective |
