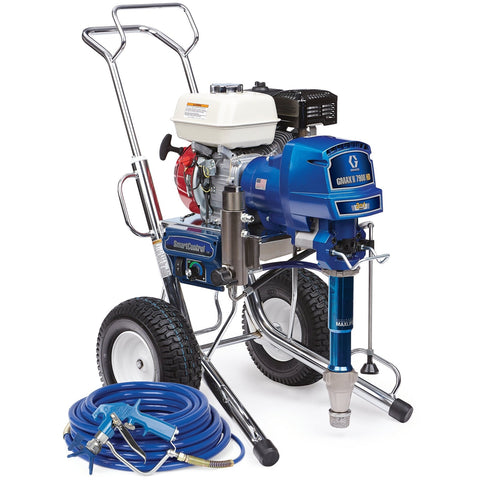

Graco | 17E841 GMAX II 7900 HD 3-in-1 Standard Series Gas Airless Sprayer
Graco
Model: 17E841
The GMAX II 7900 HD airless texture sprayer is designed for high-performance application on large projects. It offers maximum flow and exceptional durability, suitable for skim coating with Level 5 finishes, drywall mud application in various finishes, and spraying all types of paints, primers, and heavy coatings.
This GMAX II HD Standard Series airless texture sprayer provides consistent reliability, unmatched durability, and superior performance. It can handle a wide range of tip sizes, extended hose lengths, and heavy coatings with ease.
-
Endurance MaxLife Piston Pump
- Provides 6 times longer service life between repacks.
- Features an exclusive hardened MaxLife sleeve and rod.
- Oversized clearances minimize pressure drop.
-
MaxFlo 2 with Pack-Out Protection
- Reduces pack-out and increases productivity.
- Vibra-Seal Technology is self-cleaning and prevents material build-up.
- Ensures continuous spraying with True Pack-Out Protection for enhanced productivity.
- Optimized fluid passageways are designed for the heaviest coatings.
-
SmartControl 3.0
- Delivers consistent spray fan patterns and pressure control.
- Maintains the lowest dead band at any pressure, making it ideal for low overspray applications.
-
Precision Advantage Drive
- Offers the longest operational lifespan.
- Contributes to improved jobsite conditions with extremely quiet operation.
- Comes with a Lifetime Warranty.
-
Honda GX Engine
- Provides reliable power and easy starting.
- The Oil Alert system automatically shuts down the engine if the oil level becomes too low, preventing damage.
-
Easy Out Pump Filter
- Simplifies pump maintenance and reduces clogging.
- The inside-out design minimizes mess and reduces tip clogs.
-
Rugged, Durable Cart Design
- Constructed for durability and ease of movement.
- Withstands harsh jobsite conditions by absorbing impacts and vibrations.
- Features integrated hose storage and a telescoping handle for convenient hose management.
- Built-in lift handles facilitate easy loading.
-
Heavy-Duty Prime Valve
- Offers maintenance-free high-pressure dumping capabilities.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652817154 |
| Division | CED |
| Height | 40.5 IN | 102.870 CM |
| Length | 37 IN | 93.980 CM |
| Width | 27.5 IN | 69.850 CM |
| Volume | 23.848 FT3 | 0.675 M3 |
| Shipping Weight | 202 LBS | 91.626 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Replacement Pump | 25E689 |
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Engine Size (HP) | 6.5 |
| Engine Size (kW) | 4.85 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Size (mm) | 33.34 |
| Fluid Outlet Size (mm) | 9.525 |
| Frame Configuration | Cart |
| Hose Inlet Diameter (cm) | 0.9525 |
| Hose Inlet Diameter (in) | 3/8 |
| Hose Inlet Diameter (mm) | 9.525 |
| Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
| Maximum Flow Rate (L/min) | 8.33 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.048 |
| Maximum Tip Size Gun 1 (in) | 0.048 |
| Maximum Working Pressure (psi) | 3300 |
| Maximum Working Pressure (kPa) | 22800 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Power Rating (W) | 4847 |
| Maximum Working Pressure (MPa) | 22.8 |
| Pressure Control Type | SmartControl 3.0 |
| Overall Width (mm) | 620 |
| Model | GMAX II HD |
| Maximum Working Pressure (bar) | 228 |
| Overall Height (cm) | 102.9 |
| Overall Height (in) | 40.5 |
| Weight (kg) | 70 |
| Overall Height (mm) | 1029 |
| Overall Length (cm) | 96.8 |
| Overall Width (in) | 24.4 |
| Overall Length (in) | 38.1 |
| Series | 7900 |
| Overall Length (mm) | 968 |
| Overall Width (cm) | 62 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Pump Mount Type | QuikChange |
| Pump Rod Type | MaxLife |
| Number of Guns | 4 |
| Maximum Tip Size Gun 2 (in) | 0.035 |
| Recommended Annual Usage | 100-200 gallons per week |
| Maximum Tip Size Gun 3 (in) | 0.027 |
| Maximum Tip Size Gun 4 (in) | 0.023 |
| Product Series | Standard |
