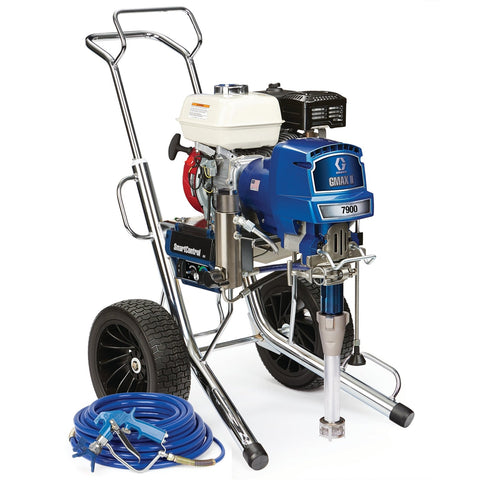

Graco | 17E835 GMAX II 7900 Roof Rig Gas Airless Sprayer
Graco
Model: 17E835
The GMAX II 7900 Roof Rig is the industry standard for professional contractors spraying a full range of coatings on residential, commercial, and industrial jobs. Powered by Honda engines, this portable rig is designed for versatile jobsite mobility.
-
Endurance Vortex MaxLife Extreme Piston Pump
- Offers extended lifespan
- Features Vortex Rotating Rod Technology
- Extreme rod design increases pump rod life by 3 times
- Oversized passages facilitate high-velocity flow for even piston wear
- Achieves 6 times more gallons sprayed between repacks
- Graco's exclusive abrasion-resistance composite provides a durable wear surface
- Repack pump in minutes using the QuikPak cartridge repair system
-
ProConnect 2 Pump Replacement System
- Enables pump replacement in 1 minute or less, without tools, pins, or loose parts
- Minimizes costly downtime
-
Flat Proof Tires
- Eliminates the risk of flat tires
- Tires are resistant to punctures from nails, screws, or sharp debris
-
Crushproof Inlet Strainer
- Provides durable filtration
- Withstands harsh impacts to maintain filtering and flow
-
SmartControl 3.0
- Delivers consistent spray fan and pressure control
- Handles the widest range of coatings with a consistent fan pattern
- Features the lowest dead band at any pressure
-
WatchDog Pump Protection System
- Protects the pump from damage
- Automatically shuts down the pump when paint runs out or if the hose is damaged
-
Precision Advantage Drive
- Offers the longest drive lifespan
- Enhances jobsite conditions with extremely quiet operation
- Includes a Lifetime Warranty
-
Honda Engines
- Provides reliable, powerful, and easy-to-start operation
- Oil Alert system automatically shuts down the engine if oil level drops too low
- Preferred by contractors
-
Easy Out Pump Filter
- Facilitates easy maintenance and reduces clogging
- Exclusive inside-out filtering process ensures a quality finish with less mess
-
Additional Features
- Includes Contractor PC Spray Gun
- Features Heavy-Duty Blue Texture Gun
- Equipped with Heavy-Duty Prime Valve
- Includes LED Display
- Designed with a rugged, durable cart
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652817093 |
| Division | CED |
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Replacement Pump | 17H827 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard |
| Maximum Tip Size (in) | .048 |
| Maximum Working Pressure (psi) | 3300 |
| Maximum Working Pressure (kPa) | 22800 |
| Maximum Working Pressure (MPa) | 22.8 |
| Model | GMAX II |
| Maximum Working Pressure (bar) | 228 |
| Series | 7900 |
| Product Series | Roof Rig |
