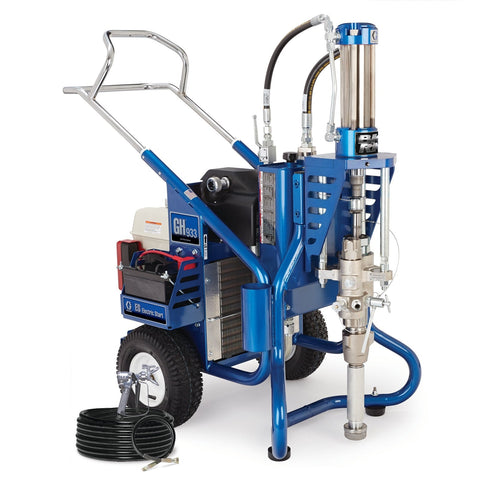

Graco | 16U286 GH 933ES Big Rig Gas Hydraulic Sprayer, Complete
Graco
Model: 16U286
For 30 years, contractors have relied on the GH line of gas hydraulic sprayers for maximum performance and versatility. The GH 933ES is capable of delivering high pressure for extended hose runs or difficult-to-atomize materials, as well as high flow rates for broader coverage.
-
Honda Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank for optimal performance.
- Contractor-preferred engine with Oil Alert system.
- Includes a back-up pull start.
- High-capacity, 12 Volt 18 Amp charging system.
-
Heavy-Duty Hydraulic System
- Features faster, more responsive changeover.
- O-ring sealed to prevent leaks.
- Provides high-precision pressure control.
- Does not require a hydraulic reset button.
- Durable hydraulic lines ensure long service life.
-
Heavy-Duty Cooling System
- Large 4-gallon hydraulic reservoir.
- Return line hydraulic filter extends component life.
- No special hydraulic fluid is required.
- Equipped with a proven cooler and blower system.
- Features an easy-to-use drain plug.
-
Rugged, Heavy-Duty Steel Frame
- Includes easy-roll tubed pneumatic tires.
- Enamel-painted steel tubing offers corrosion protection.
- Multi-function design allows conversion to skid mount in seconds.
-
Xtreme Pump
- Features a QuikChange pump section.
- Proven durability and performance.
- Utilizes long-life XtremeSeal and leather packings.
- Heavy-duty piston rod for extended lifespan.
- QuickAccess intake valve removes easily for rapid repairs.
-
Ready-To-Spray Complete System
- Includes 50 feet of pressure-rated hose, gun, tips, and all necessary fittings.
-
Additional Features
- Lockable pressure control knob.
- Grounding wire included for safe use with solvent materials.
- Large diameter siphon hose.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955389908 |
| Division | CED |
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Replacement Pump | 16U755 |
| Engine Brand | Honda |
| Engine Size (HP) | 13 |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Size (mm) | 31.75 |
| Fluid Outlet Size (mm) | 19.05 |
| Frame Configuration | Cart |
| Includes | XTR-7 Airless Spray Gun, XHD RAC 519 Spray Tip, XHD RAC Guard, 3/8 in x 50 ft Xtreme-Duty Airless Hose, 1/4 in x 6 ft Xtreme-Duty Airless Whip Hose |
| Maximum Flow Rate (L/min) | 9.5 |
| Maximum Hose Length (ft) | 50 |
| Maximum Hose Length (m) | 15 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size Gun 1 (in) | 0.053 |
| Maximum Working Pressure (psi) | 7250 |
| Maximum Working Pressure (kPa) | 50000 |
| Power Rating (HP) | 13 |
| Power Rating (kW) | 9.69 |
| Power Rating (W) | 9694 |
| Maximum Working Pressure (MPa) | 50 |
| Pressure Control Type | Pressure Control Knob |
| Model | GH |
| Maximum Working Pressure (bar) | 500 |
| Weight (kg) | 199 |
| Series | 933ES |
| Outlet Paint Filter | Easy Out |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Number of Guns | 1 |
| Product Type | Single Leg |
| Material Application | Paints, Primers |
| Power Rating (cc) | 390 |
