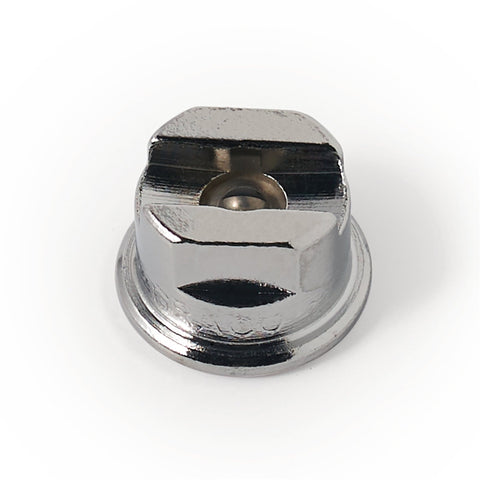

Graco | 163717 Silver Flat Tip, 717
Graco
Model: 163717
The 717 Silver Flat Tip is a precision spray tip designed for specialty architectural and industrial applications. It features a 0.017 inch orifice and produces a fan width of 14 to 16 inches.
To install, place the flat tip into the backside of the guard and thread it onto the gun. To clear any clogs, remove the guard and flush the spray tip.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955063372 |
| Division | CED |
| Height | .95 IN | 2.413 CM |
| Length | .7 IN | 1.778 CM |
| Width | .65 IN | 1.651 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | .03 LBS | 0.014 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.017 |
| Maximum Working Pressure (kPa) | 34500 |
| Maximum Working Pressure (psi) | 5000 |
| Maximum Working Pressure (bar) | 345 |
| Maximum Fan Width (in) | 14 |
| Maximum Fan Width (mm) | 406 |
| Tip Type | Airless |
| Pattern Size (in) | 14 to 16 |
| Maximum Fan Width (cm) | 35 |
| Maximum Flow Rate (L/min) | 1.17 |
| Minimum Fan Width (in) | 14 |
| Minimum Fan Width (mm) | 356 |
| Pattern Size (mm) | 355.6 to 406.4 |
| Model | Silver |
| Series | Flat Tip |
