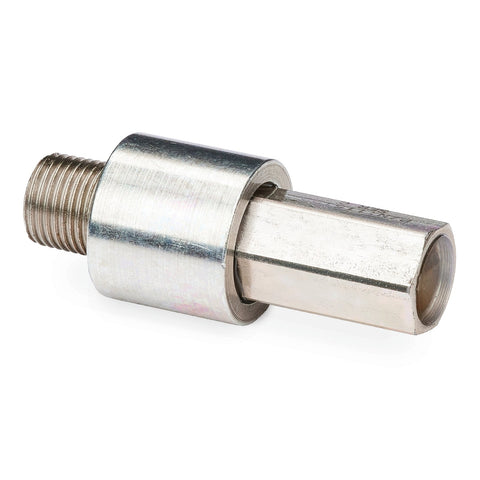

Graco | 115122 Pressure Relief Valve to Atmosphere, 1/8” NPT male, 4,000 psi (276 bar)
Graco
Model: 115122
These indicators ensure continuous machine operation by allowing lubrication to reach critical points even during blockages. They identify lube line blockages while the system continues to supply lubricant to unaffected areas.
- No reset time or effort needed after clearing a blockage.
- Provides clear information on blocked lines, high system pressure, or blocked bearings.
- Compatible with MSP, MX, MXP, MJ, and MHH divider valves.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955891821 |
| Division | LED |
| Height | .9 IN | 2.286 CM |
| Length | 5 IN | 12.700 CM |
| Width | 3 IN | 7.620 CM |
| Volume | .008 FT3 | 0.000 M3 |
| Shipping Weight | .12 LBS | 0.054 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Working Pressure (bar) | 276 |
| Maximum Working Pressure (kPa) | 27600 |
| Maximum Working Pressure (psi) | 4000 |
| Maximum Working Pressure (MPa) | 28 |
