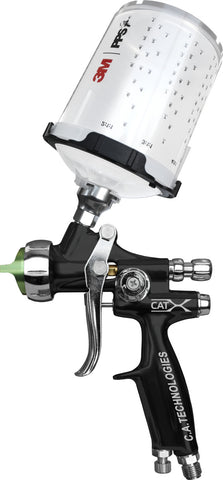

The CAT-X is a professional-grade gravity feed spray gun engineered for superior fluid delivery, ergonomic handling, and exceptional atomization. Designed to outperform competitive models, this unit includes both HVLP and pressure-reduced air caps to ensure full compliance with all regulatory standards across the United States. The CAT-X-B AUTOMOTIVE-PACK comes equipped with 1.3, 1.4, and 1.5 needle/nozzle sets and PPS compatibility for streamlined application.
Always verify coating requirements and compatibility before use.
Achieves a transfer efficiency rating of 65% or higher for reduced material waste.
Utilizes a 12-point plenum nozzle configuration to deliver high-quality, consistent atomization.
Constructed with stainless steel for all wetted components to maximize durability and provide excellent resistance to corrosion.
Features a lightweight, compact architecture that simplifies maintenance and minimizes the volume of solvent required for cleaning.
| Product Type | Airspray manual gun |
| Application Technique | Airspray - HVLP, Airspray - HVLP-Plus, Manual coating |
| Nozzle Size (mm) | 0.8, 2.2 mm |
| Air Consumption Range (gal/min) | 0, 100 gal/min |
| Weight (oz) | 20 oz |
| Application area | Metal coating, Wood coating, Wheel coating |
| Material Wetted Parts | Stainless steel |
| Atomizer Air Connection Thread Type | NPSM 1/4'' |
| Atomizer Air Connection Thread Sex | M |
| Scope of delivery | Box set: CAT-X 1.3 mm Ø nozzle size, as well as other nozzle sizes (Wood - 1.0, 1.5 and 1.7 mm Ø) (Auto - 1.4, 1.5 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tools, cleaning brush, manual instruction, Case: Includes CAT-X 1.3 mm Ø nozzle size, as well as other nozzle sizes (Wood - 1.0, 1.5 and 1.7 mm Ø) (Auto - 1.4, 1.5 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tool, cleaning brush, manual instruction, mini |
| Weight | 0.50 lb (227 g) |
