A versatile choice for your work
- Fine wood finishing and cabinetry
- High-precision furniture manufacturing
- Professional automotive and industrial coating
- Applications requiring strict regulatory compliance
CA Technologies CAT-X-C-W-PPS CAT-X CLASSIC WOOD 1.0,1.3,1.5,1.7 PPS
Fine Finishing
CA Technologies CAT-X Compliant HVLP Gravity Feed — Superior Atomization for Professional Finishing
The CAT-X is a professional-grade gravity feed spray gun engineered for high-performance applications. It delivers exceptional atomization, ergonomic handling, and precise fluid delivery that outperforms competitive models. The CAT-X is equipped with both HVLP and pressure-reduced air caps to ensure full compliance with all regulatory codes across the United States.
0.8, 2.2 mmNozzle Size (mm)
0, 100 gal/minAir Consumption Range (gal/min)
20 ozWeight (oz)
Genuine CA Technologies equipment

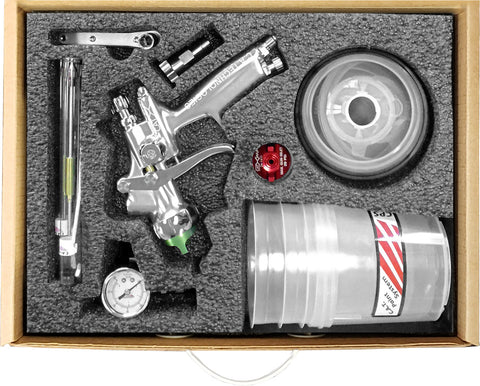

Includes Box set: CAT-X 1.3 mm Ø nozzle size, as well as other nozzle sizes (Wood - 1.0, 1.5 and 1.7 mm Ø) (Auto - 1.4, 1.5 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners
Ready to set up and start working
- Box set: CAT-X 1.3 mm Ø nozzle size
- as well as other nozzle sizes (Wood - 1.0, 1.5 and 1.7 mm Ø) (Auto - 1.4, 1.5 mm Ø)
- gravity-feed cup or 3M PPS™ system with 3 lids and liners
- second air cap HVLP
- tools
- cleaning brush
- manual instruction
- Case: Includes CAT-X 1.3 mm Ø nozzle size
- as well as other nozzle sizes (Wood - 1.0, 1.5 and 1.7 mm Ø) (Auto - 1.4, 1.5 mm Ø)
- gravity-feed cup or 3M PPS™ system with 3 lids and liners
- second air cap HVLP
- tool
- cleaning brush
- manual instruction
- mini
Always verify coating requirements and compatibility before use.
Performance Features
Designed to reduce downtime and simplify maintenance
Achieves a transfer efficiency rate of 65% or higher.
Utilizes a 12-point plenum nozzle configuration to produce superior atomization quality.
Constructed with stainless steel for all material-wetted components to provide maximum corrosion resistance and durability.
Features a lightweight, compact frame that minimizes solvent consumption and simplifies the cleaning process.
Product detailsTechnical Specifications
| Product Type | Airspray manual gun |
| Application Technique | Airspray - HVLP, Airspray - HVLP-Plus, Manual coating |
| Nozzle Size (mm) | 0.8, 2.2 mm |
| Air Consumption Range (gal/min) | 0, 100 gal/min |
| Weight (oz) | 20 oz |
| Application area | Metal coating, Wood coating, Wheel coating |
| Material Wetted Parts | Stainless steel |
| Atomizer Air Connection Thread Type | NPSM 1/4'' |
| Atomizer Air Connection Thread Sex | M |
| Scope of delivery | Box set: CAT-X 1.3 mm Ø nozzle size, as well as other nozzle sizes (Wood - 1.0, 1.5 and 1.7 mm Ø) (Auto - 1.4, 1.5 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tools, cleaning brush, manual instruction, Case: Includes CAT-X 1.3 mm Ø nozzle size, as well as other nozzle sizes (Wood - 1.0, 1.5 and 1.7 mm Ø) (Auto - 1.4, 1.5 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tool, cleaning brush, manual instruction, mini |
Package detailsShipping Information
| Weight | 0.50 lb (227 g) |
