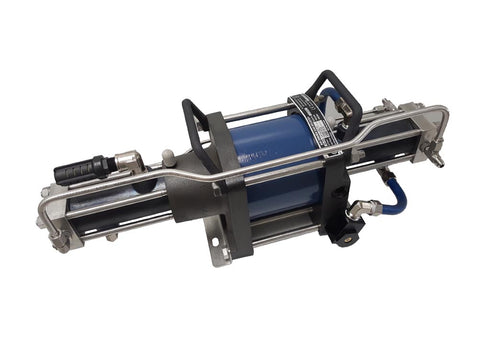

HII | 5G-DS-50 Air-Driven Gas Booster, Double Acting, 15000 psi
Hydraulics International Inc. Air-Driven Gas Booster, Double Acting, Single Drive (Single Stage)
HII Model: 5G-DS-50
| Approximate Stall Point: | Maximum Safe Pressure PSI (BAR) | Volume Displacement Per Cycle | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Outlet | Inlet | IN3 (CM3) | |||||||
| (50 x Drive Air) + (1.00 x Gas Inlet) | 15000 (1034) | 15000 (1034) | 3.52 (58) | |||||||
Features:
- Separation between drive and gas section uses three
dynamic seals with dual vents.
- Air drive line lubrication not required.
- Rugged soft-seat, high-flow check valves in gas section(s).
- Only hydrocarbon-free stainless steel, bronze, PTFE and
Viton gas section internal parts exposed to gas flow.
- Heat of compression reduced for long seal life because cold
exhaust air surrounds gas barrel(s) inside cooling sleeve(s)
(see Figure 1, Item 4 above).
- Standard trim is weatherproof and suitable for offshore service.
-
