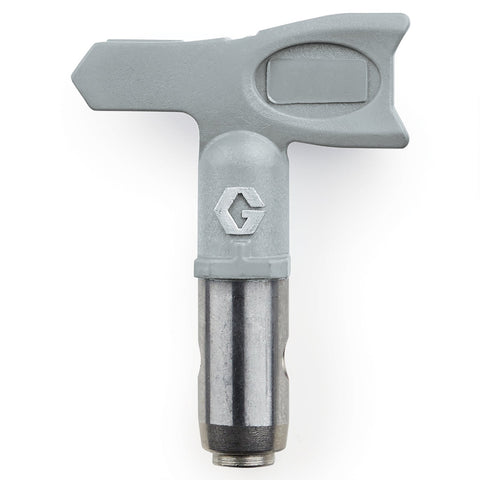

Graco | TCP414 TC Pro SwitchTip 414
Graco
Model: TCP414
The Reverse-A-Clean (RAC) 414 TC Pro SwitchTip is engineered for application on narrow surfaces and materials including solid color stains, enamels, primers, interior paints, paint + primers, and exterior paints. The 414 TC Pro SwitchTip features a 0.014 inch orifice and creates an 8 to 10 inch fan pattern. This tip can be reversed to clear clogs. TC Pro tips are compatible with the TC Pro Tip Guard.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652404514 |
| Division | CED |
| Height | .8 IN | 2.032 CM |
| Length | 5.3 IN | 13.462 CM |
| Width | 2.7 IN | 6.858 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.014 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | TC Pro Corded, TC Pro Cordless, TC Pro PLUS Cordless |
| Maximum Fan Width (in) | 8 |
| Maximum Fan Width (mm) | 254 |
| Maximum Fan Width (cm) | 25.4 |
| Maximum Flow Rate (L/min) | 0.79 |
| Minimum Fan Width (in) | 8 |
| Minimum Fan Width (mm) | 203 |
| Model | TC Pro |
| Series | SwitchTip |
