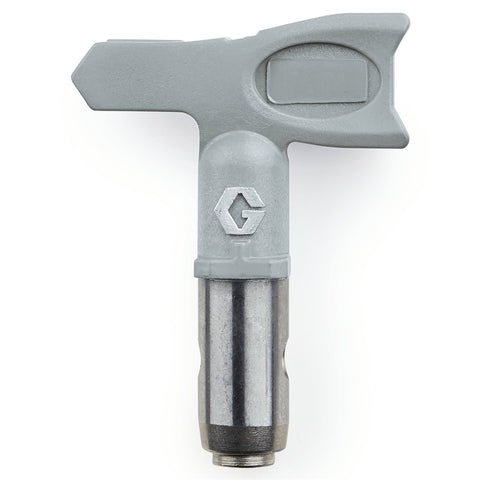

Graco | TCP208 TC Pro SwitchTip 208
Graco
Model: TCP208
The Reverse-A-Clean (RAC) 208 TC Pro SwitchTip is engineered for narrow surfaces and thin materials, including water-based lacquers and stains. This tip features a 0.008 inch orifice and creates a 4 to 6 inch fan spray. The SwitchTip can be reversed to clear clogs. The TC Pro tips are compatible with the TC Pro Tip Guard.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652404415 |
| Division | CED |
| Height | .8 IN | 2.032 CM |
| Length | 5.3 IN | 13.462 CM |
| Width | 2.7 IN | 6.858 CM |
| Volume | .007 FT3 | 0.000 M3 |
| Shipping Weight | .08 LBS | 0.036 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Orifice Diameter (in) | 0.008 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | TC Pro Corded, TC Pro Cordless, TC Pro PLUS Cordless |
| Maximum Fan Width (in) | 4 |
| Maximum Fan Width (mm) | 152 |
| Maximum Fan Width (cm) | 15.2 |
| Maximum Flow Rate (L/min) | 0.26 |
| Minimum Fan Width (in) | 4 |
| Minimum Fan Width (mm) | 102 |
| Model | TC Pro |
| Series | SwitchTip |
