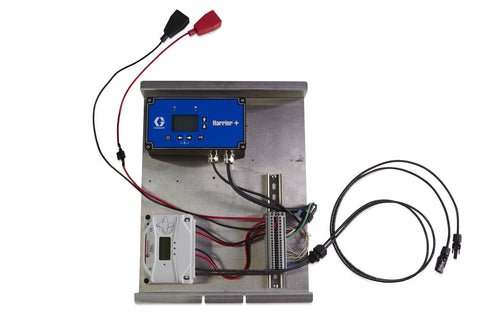

Graco | B52453 Four-Battery Control Box with Harrier+ GSM USA Controller and Includes SS20L-12V Two Panel Charge Controller
Graco
Model: B52453
To ensure proper operation of your chemical injection system, select the appropriate control box configuration. Graco provides options including plastic or steel boxes, AC and DC power, standard configurations, and NEMA-rated boxes to meet specific chemical injection application requirements. The Modular Control Boxes are customizable to achieve the correct configuration based on your application needs.
- Removable sub-plate for convenient battery access and servicing.
- Separates electric components from the battery.
- Sub-plates can be configured with all controller and charge controller options.
- Includes an On/Off switch.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652645320 |
| Division | LED |
| Height | 7 IN | 17.780 CM |
| Length | 23 IN | 58.420 CM |
| Width | 18.25 IN | 46.355 CM |
| Volume | 1.7 FT3 | 0.048 M3 |
| Shipping Weight | 14.2 LBS | 6.441 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Voltage (V dc) | 12 |
| Includes | Harrier+ GSM USA Controller, SS20L-12V Charge Controller |
